Starting System - Lancer
›
Starting System
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

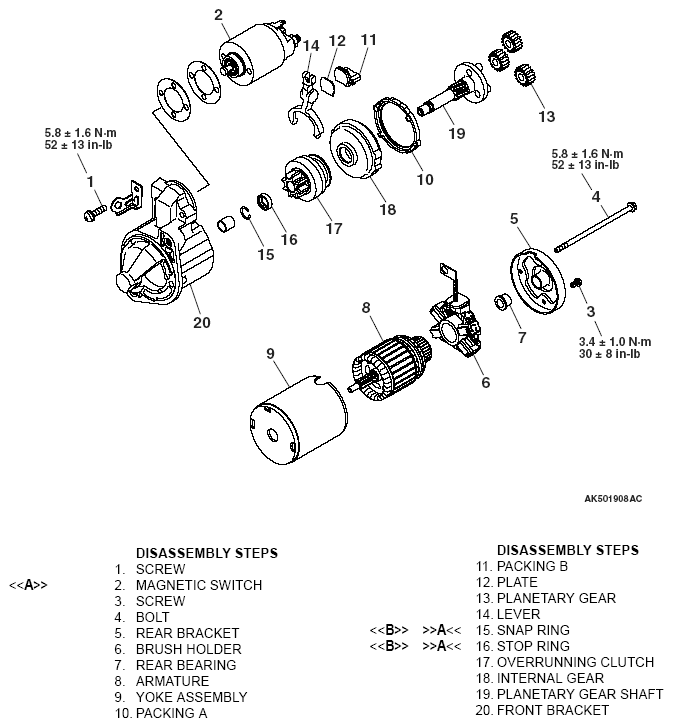

Fig 1: Starter Motor Assembly Disassemble/Assemble Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
