Ignition System - Lancer
›
Ignition System
›
Camshaft Position Sensor
›
Removal And Installation
Removal And Installation

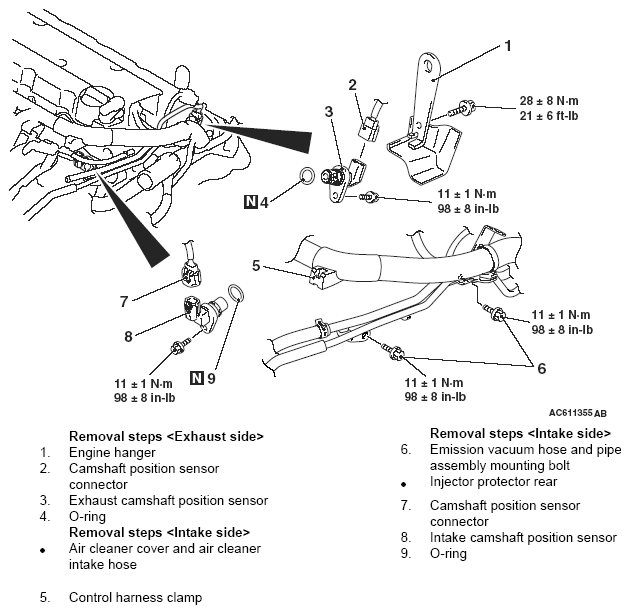

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
