Disassembly And Assembly

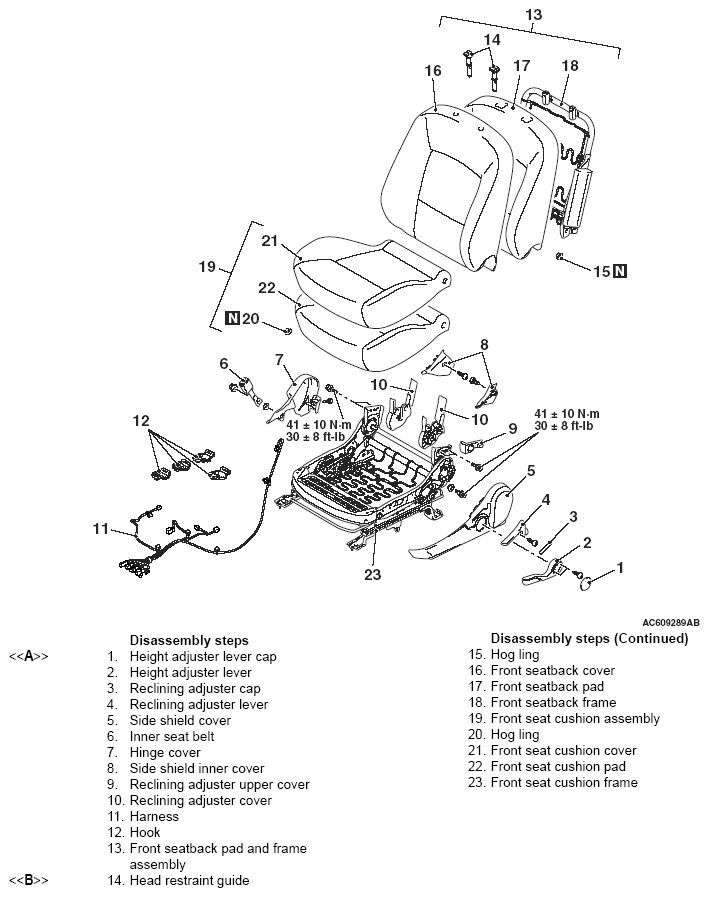

Fig 1: Front Seat Assembly Disassembling / Assembling Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover
