Interior - Lancer
›
Headlining
›
Removal And Installation
›
Notes
Removal And Installation: Notes

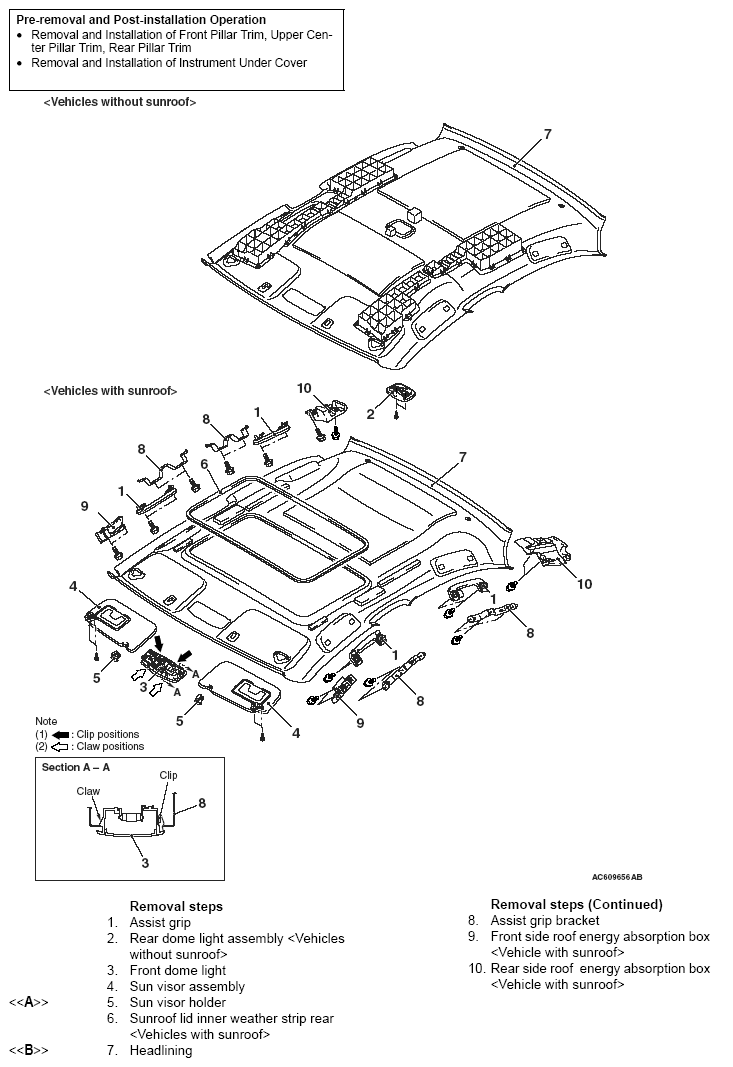

Fig 1: Identifying Sunroof Remove / Install Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB990784: Ornament Remover
