Removal And Installation: Notes

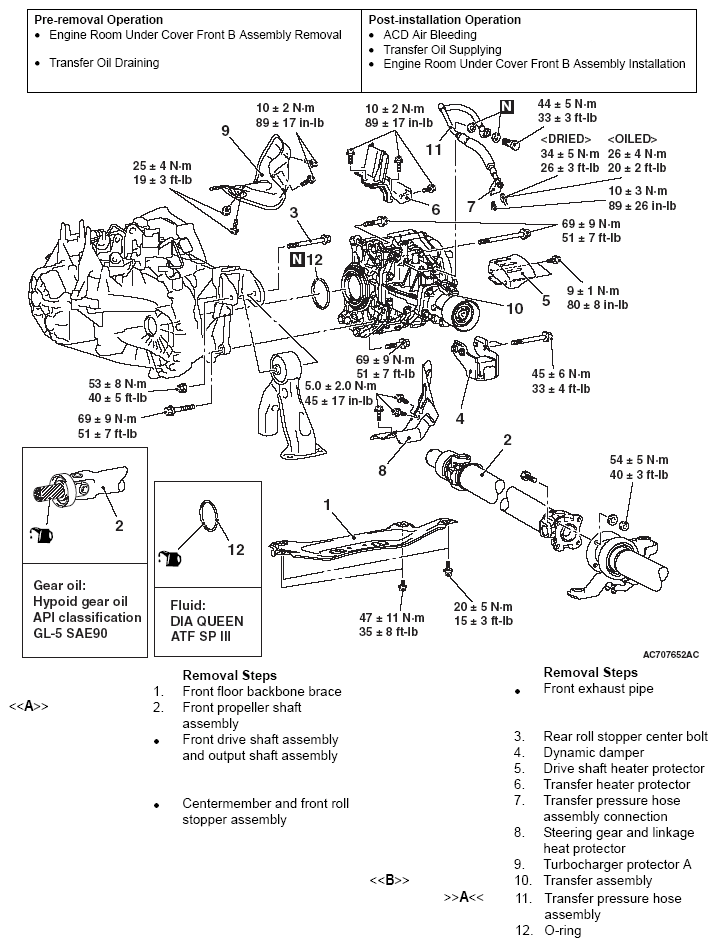

Fig 1: Transfer Assembly Remove / Install Replacement Components With Torque Specifications
G05393903Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
