Disassembly And Assembly: Notes

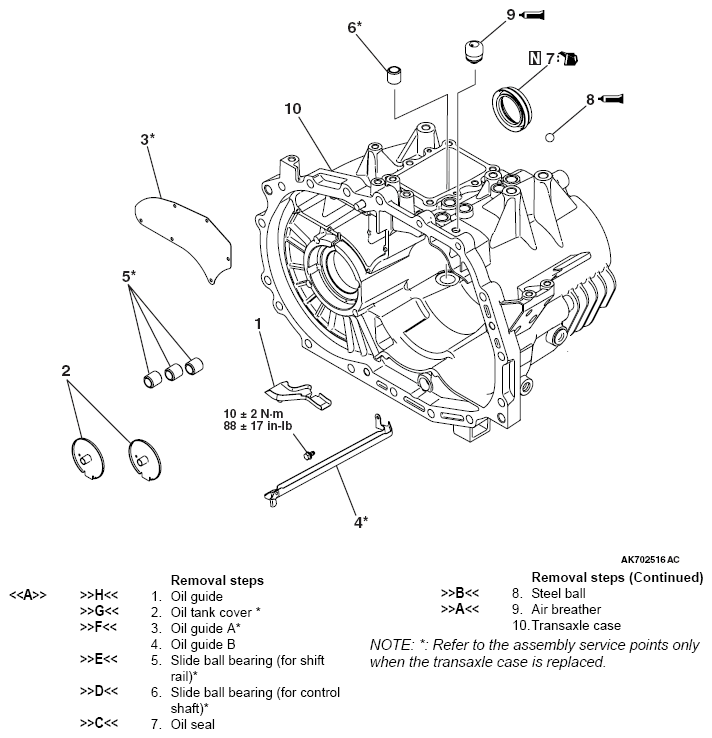

Fig 1: Exploded View Of Transaxle Case Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991946: Ply bar
• MB990883: Rear suspension bushing arbor
• MB991115: Oil seal installer
• MB990938: Installer bar
• MD999547: Oil seal installer
