Disassembly And Assembly: Notes

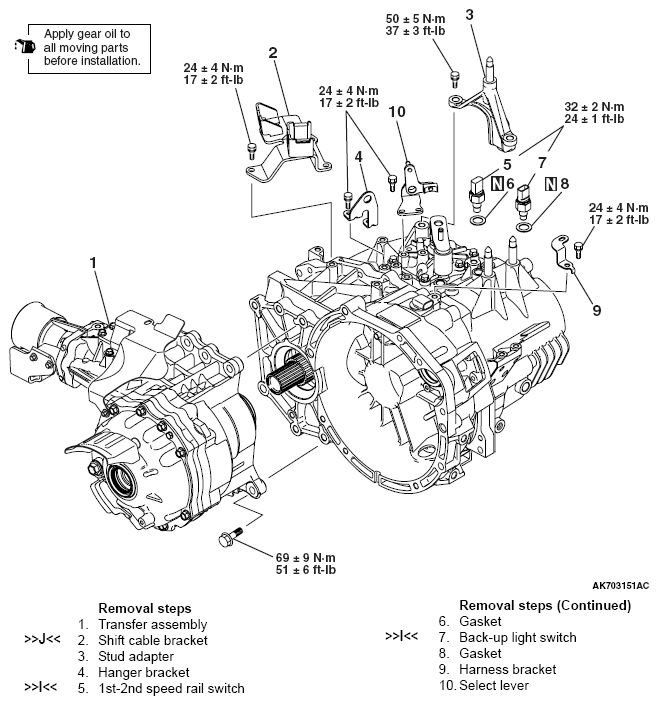

Fig 1: Transaxle Replacement Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

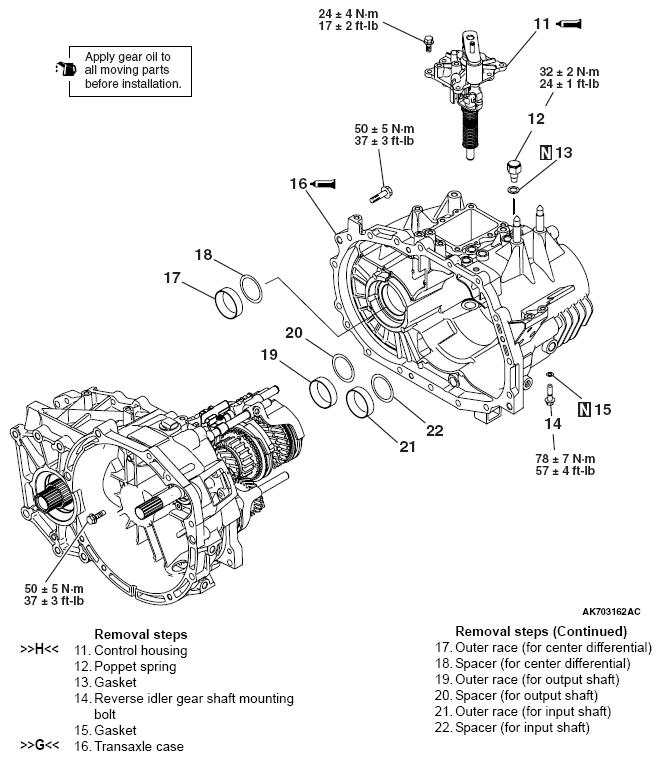

Fig 2: Transaxle Replacement Components With Torque Specifications (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

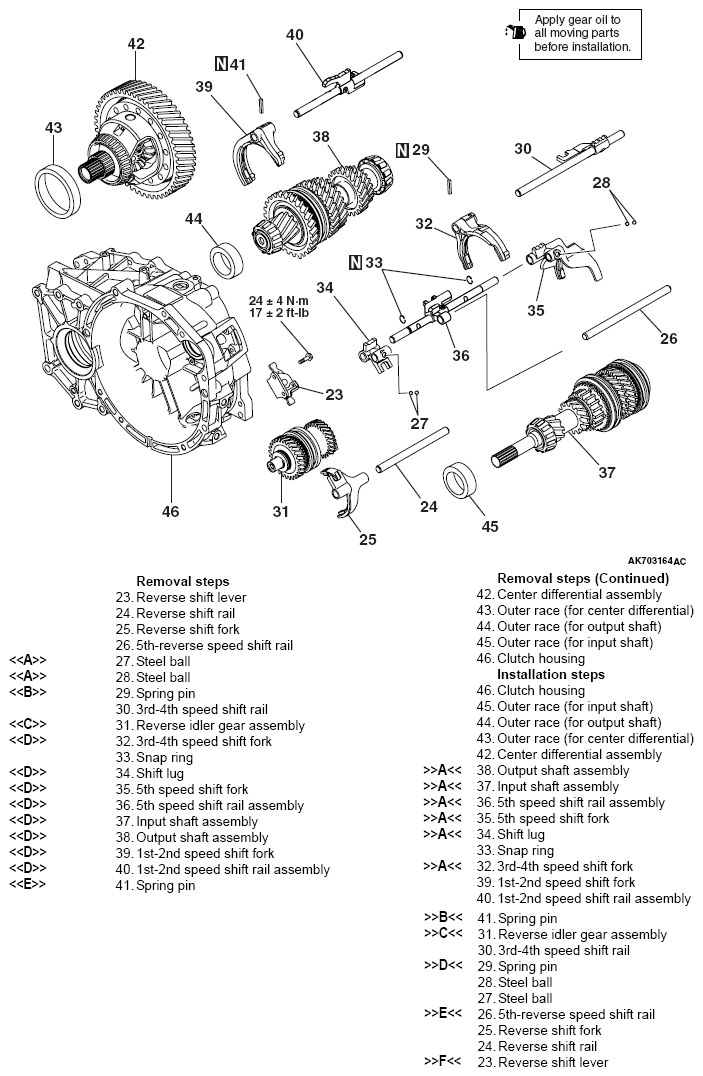

Fig 3: Transaxle Replacement Components With Torque Specifications (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
