Disassembly And Assembly: Notes

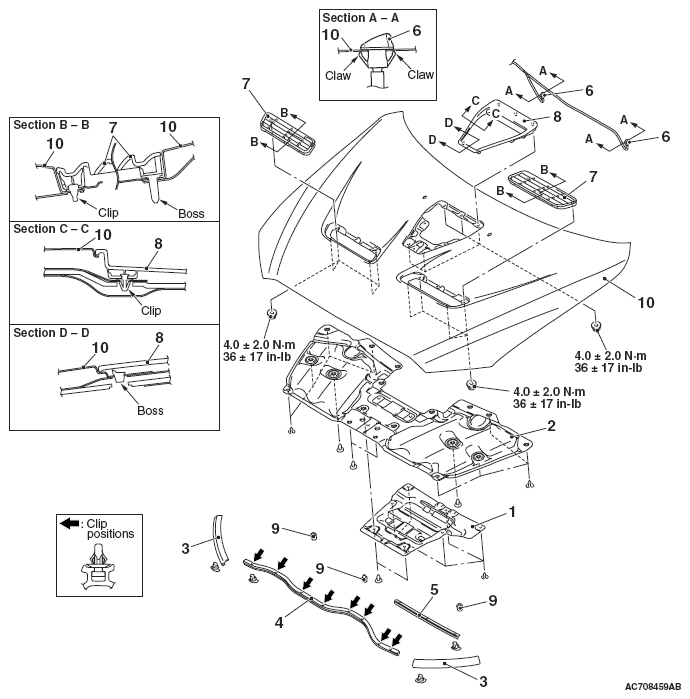

Fig 1: Disassembling View Of Hood
G05394832Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

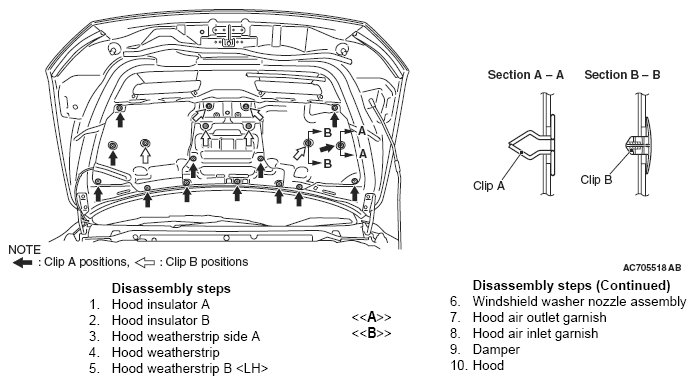

Fig 2: Identifying Hood Components
G05394833Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
