Removal And Installation: Notes

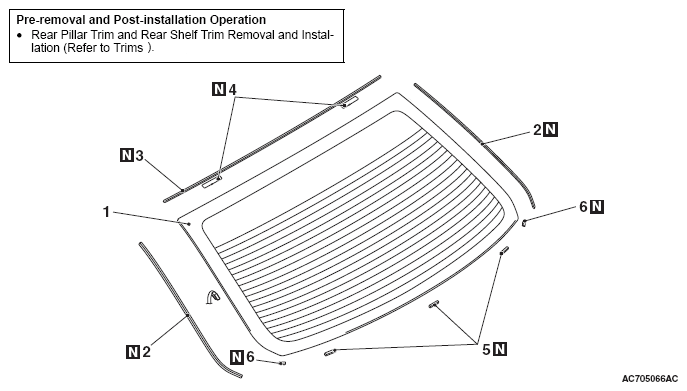

Fig 1: Identifying Rear Window Glass
G05394855Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

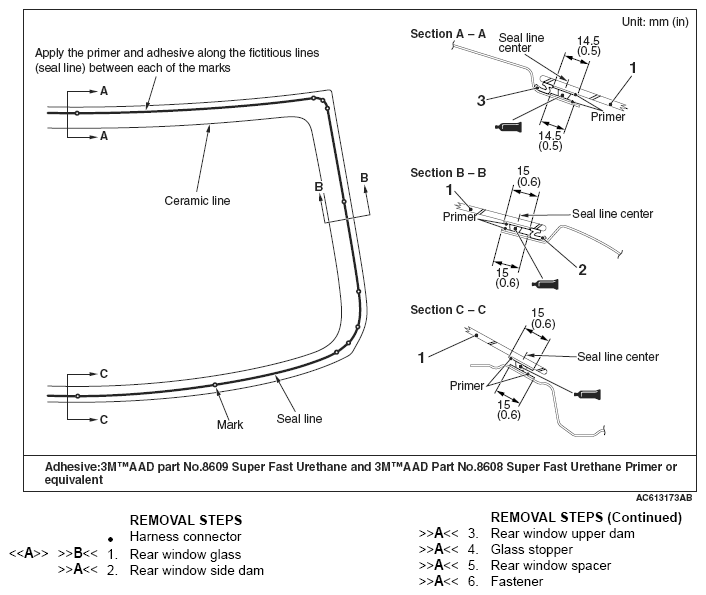

Fig 2: Identifying Area For Applying Adhesive And Primer
G05394856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
