Starting System - Lancer Evolution
›
Starting System
›
Starter Motor Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

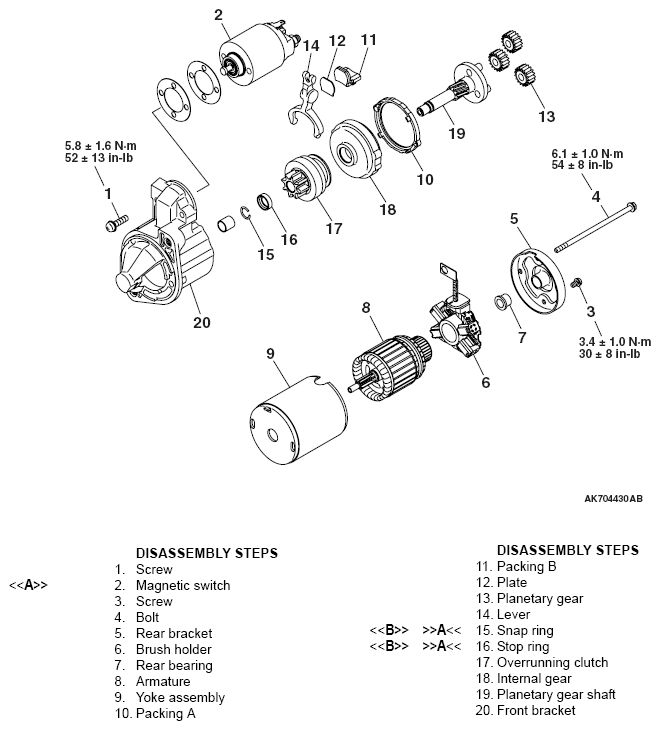

Fig 1: Engine Electrical Starting System Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
