Starting System - Lancer Evolution
›
Starting System
›
Starter Motor Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

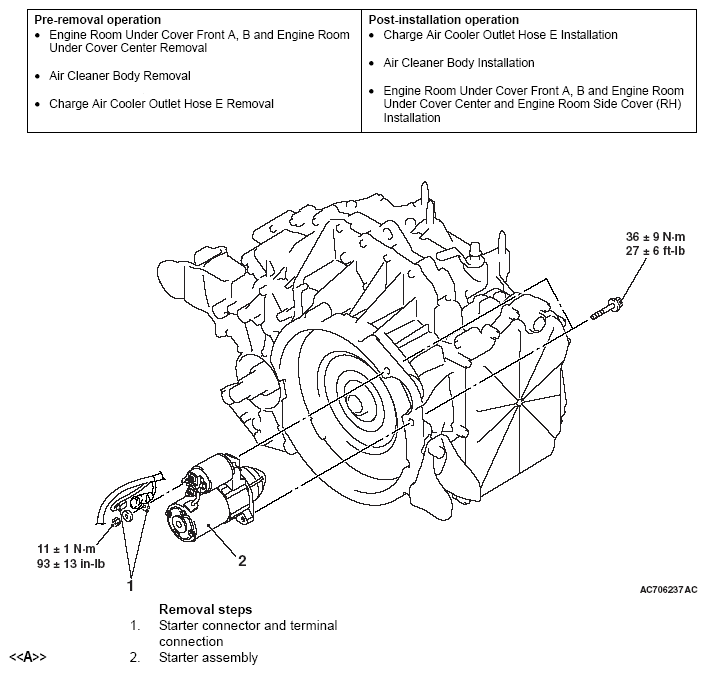

Fig 1: Starter Motor Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
