Fuel Tank
›
Disassembly And Reassembly
›
Fuel Pump Module
Fuel Pump Module
NOTE:
For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to
FUEL PUMP OPERATION CHECK
).

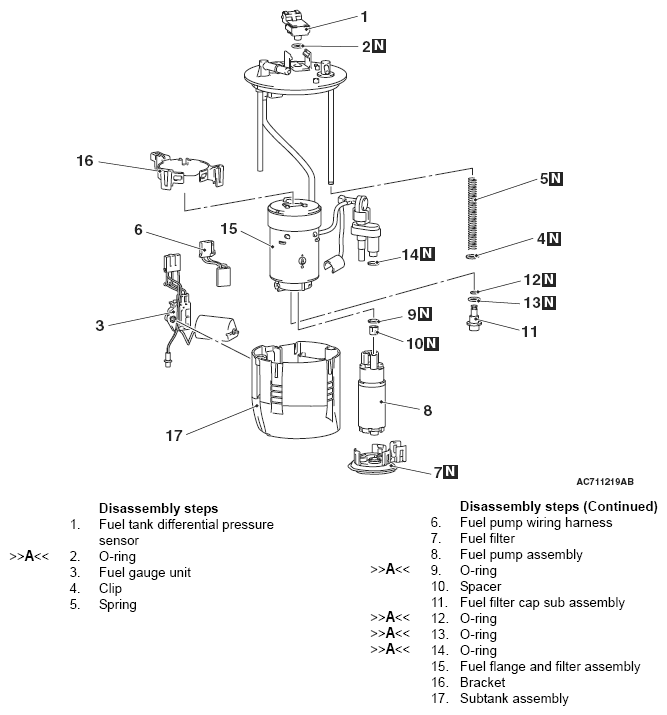

Fig 1: Identifying Fuel Pump Module Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
