Interior - Lancer Evolution
›
Instrument Lower Panel
›
Removal And Installation
Removal And Installation

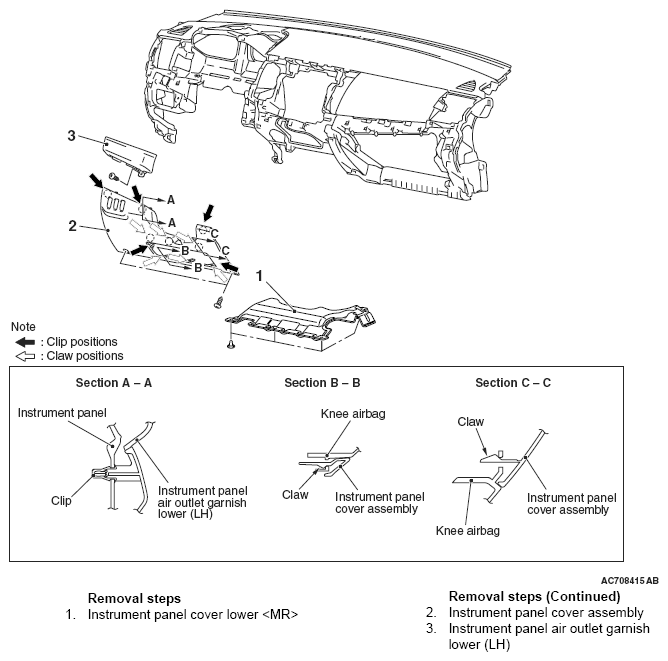

Fig 1: Identifying Instrument Lower Panel Remove/Install Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
