Removal And Installation: Notes

CAUTION: The part indicated by * is the bolt/nut with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

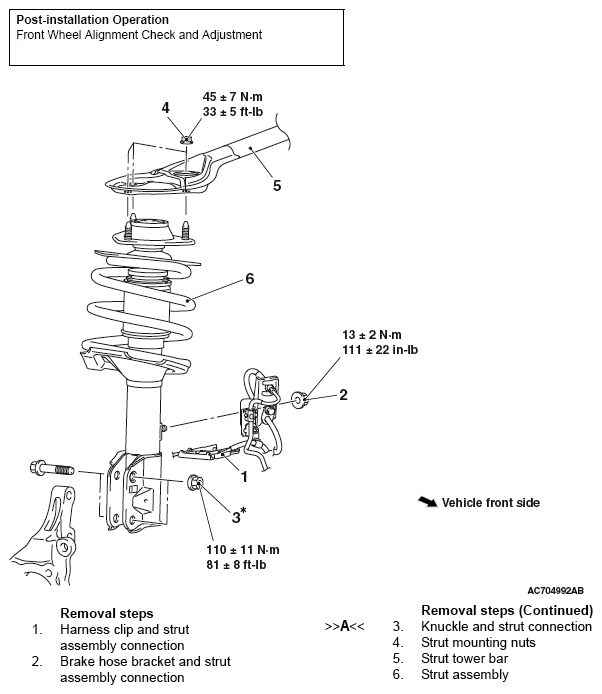

Fig 1: Strut Assembly Remove / Install Replacement Components With Torque Specifications
G05394489Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
