Active Skid Control System (ASC)
›
ASC Off Switch
›
Removal And Installation
Removal And Installation
NOTE:
Refer to
INSTRUMENT PANEL ASSEMBLY
for the clip location .

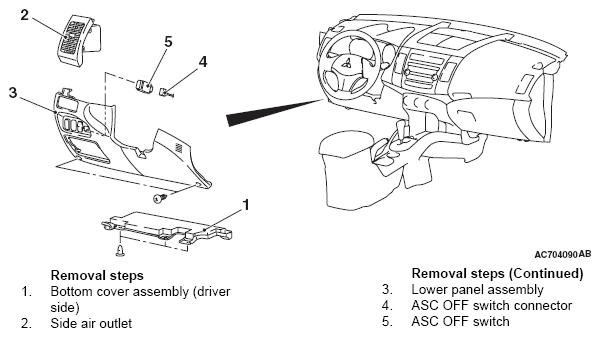

Fig 1: Identifying ASC Off Switch Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
