DTC U0125: G And Yaw Rate Sensor Message Time-Out Error/Message Error: Notes

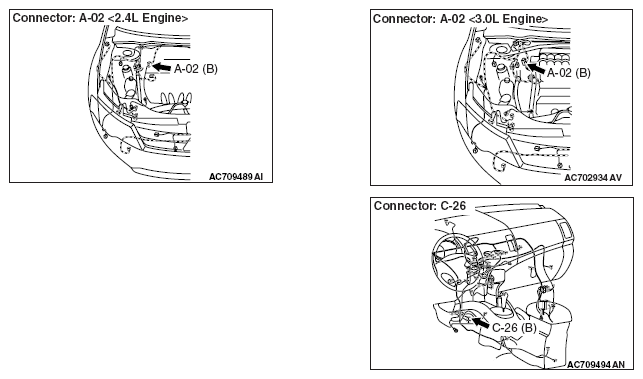

Fig 1: Identifying G And Yaw Rate Sensor Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to CAN BUS DIAGNOSIS TABLE ).
• Whenever ECU is replaced, ensure that the CAN bus lines are normal.
• Do not drop or shock the G and yaw rate sensor.
• When the G and yaw rate sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point (Refer to IN THE EVENT OF A DISCHARGED BATTERY ).
• When the hydraulic unit (integrated with ASC-ECU) is replaced, always carry out the calibration of the steering wheel sensor, the G and yaw rate sensor and brake fluid pressure sensor (Refer to IN THE EVENT OF A DISCHARGED BATTERY , STEERING WHEEL SENSOR CALIBRATION  and BRAKE FLUID PRESSURE SENSOR CALIBRATION ).
