Home › Mitsubishi › 2008 › Outlander ES, AWD › Repair and Diagnosis › Transmission › Automatic Trans › CVT - Overhaul › Forward Clutch › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

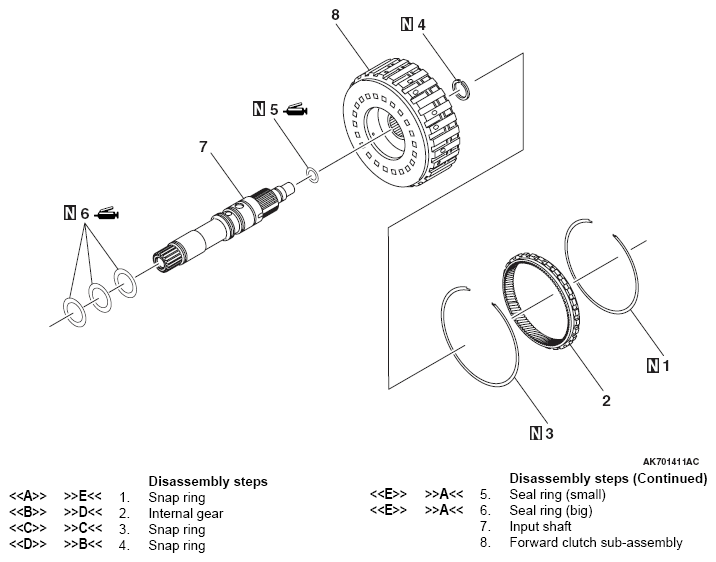

Fig 1: Exploded View Of Forward Clutch Components
G05431594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
