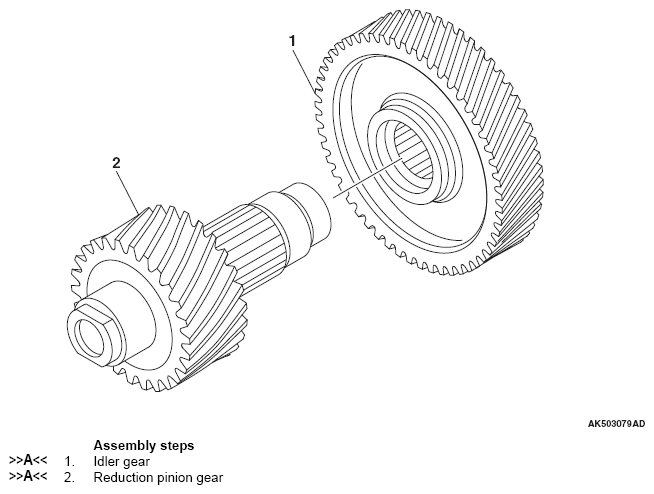

Reduction Gear Sub-Assembly: Assembly: Notes
CAUTION:
The reduction gear sub-assembly can only be assembled, not disassembled.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required special tools:
- MD998812: Installer Cap
- MD998813: Installer-100
- MD998819: Installer adapter (40)
