< 3.0L Engine >
< 3.0L Engine >

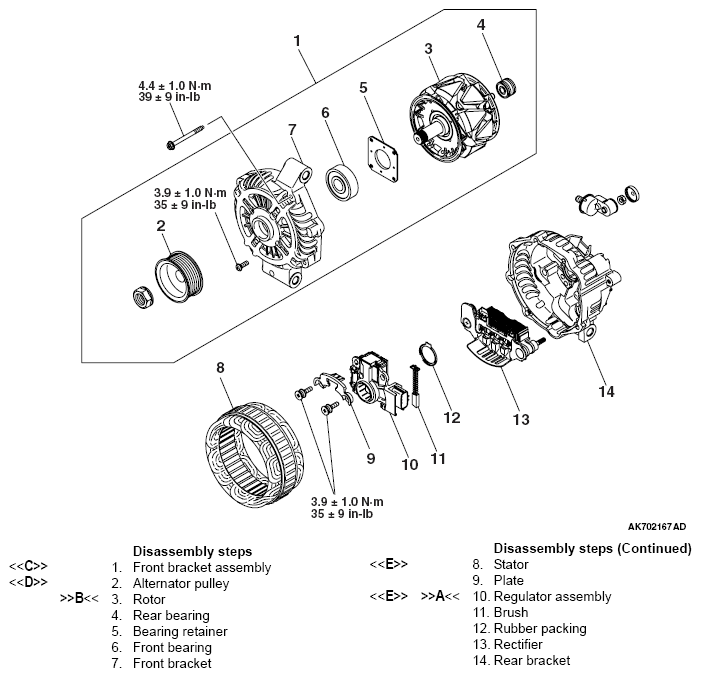

Fig 1: Disassembled View Of Generator Assembly With Torque Specifications - 3.0L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
