*Can C Diagnostic (+) Circuit Open: Notes

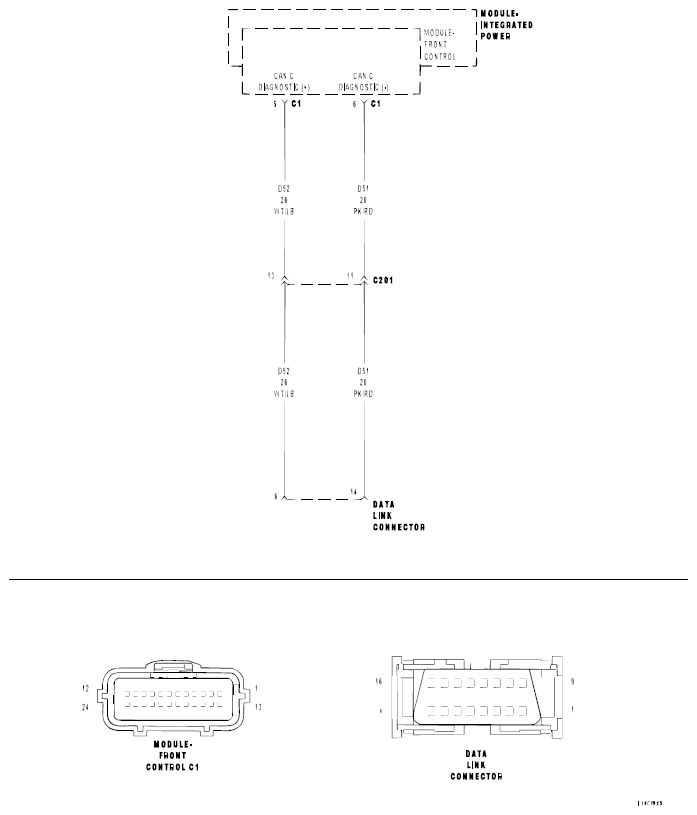

Fig 1: CAN C Diagnostic Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

When Monitored:
When the scan tool queries the FCM.
Set Condition:
The scan tool has detected an open condition on the (D52) CAN C Diagnostic (+) circuit.

Possible Causes
(D52) CAN C DIAGNOSTIC (+) CIRCUIT OPEN
FRONT CONTROL MODULE
