U0024-Can B Bus (-) Circuit Open: Notes

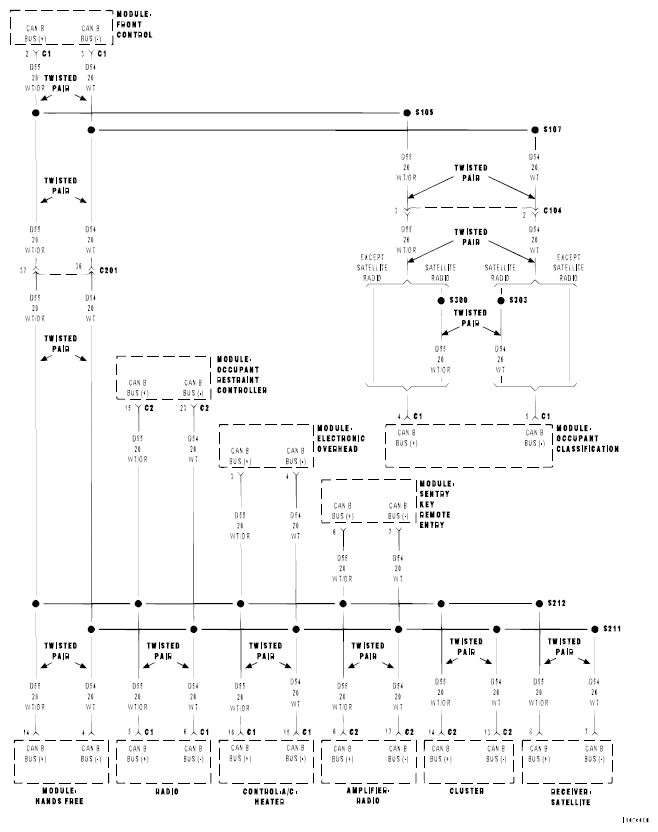

Fig 1: CAN B Bus Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

When Monitored:
With the ignition on and battery voltage between 10 and 16 volts.
Set Condition:
The FCM detects the (D54) CAN B Bus (-) circuit is open.

Possible Causes
CAN B BUS TERMINAL PUSH OUT
SPREAD CAN B BUS TERMINAL
(D54) CAN B BUS (-) CIRCUIT OPEN
INTERNAL OPEN IN A CAN B BUS MODULE
