FixVault
Home
›
Mitsubishi
›
2009
›
Eclipse GS, Automatic
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Floor Console Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

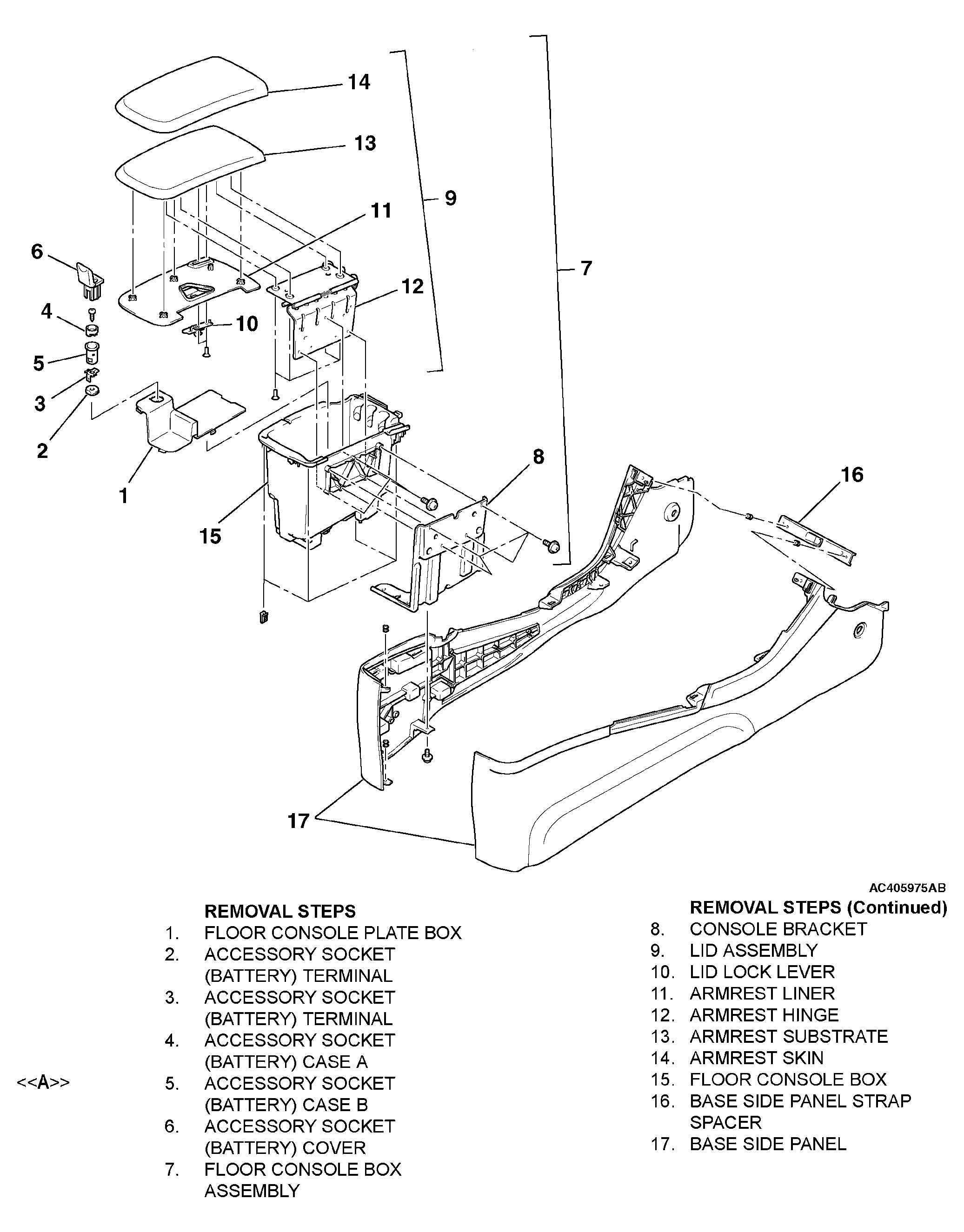

Fig 1: Disassembling & Assembling Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
