Removal And Installation: Notes

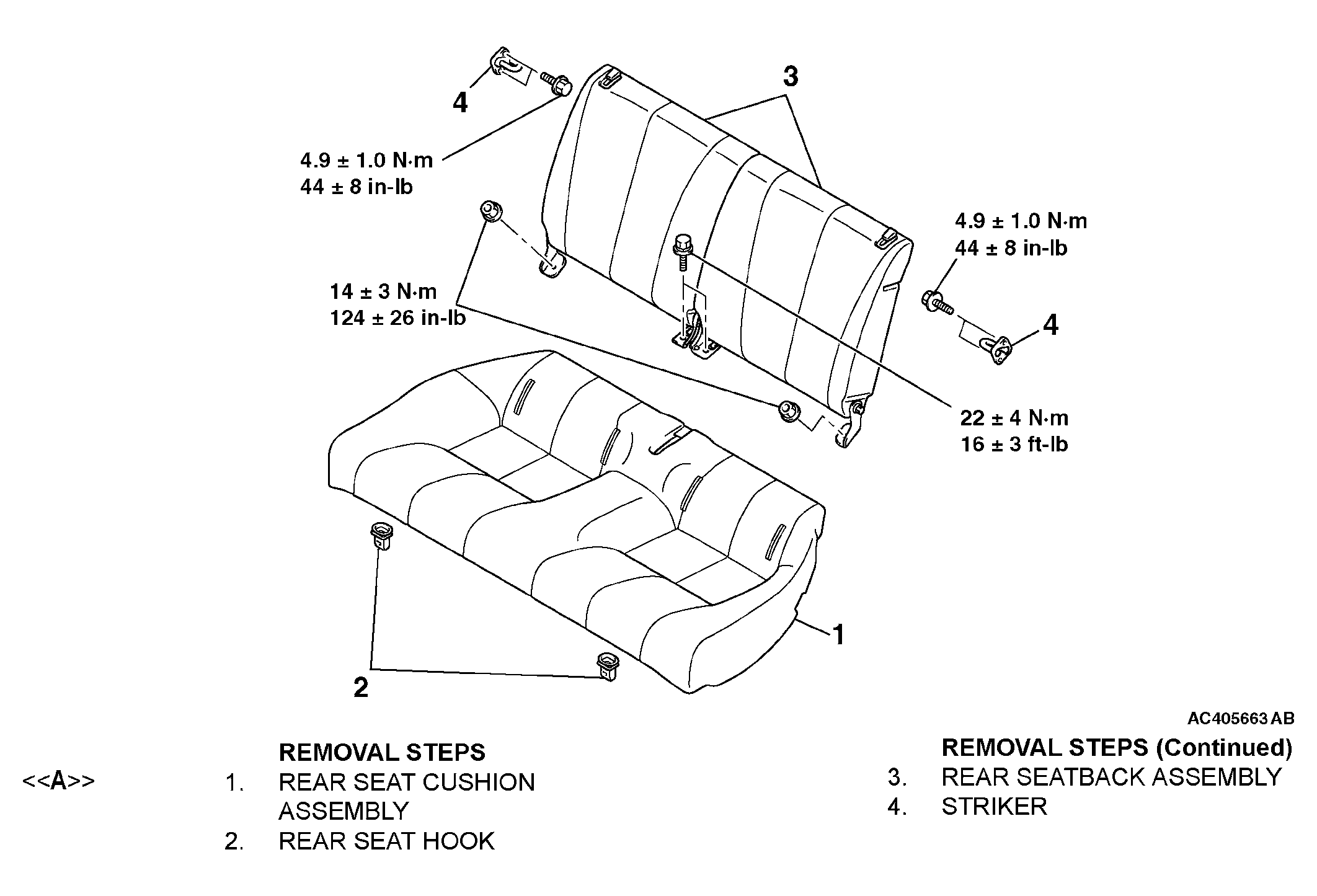

Fig 1: Removing And Installing Rear Seat Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

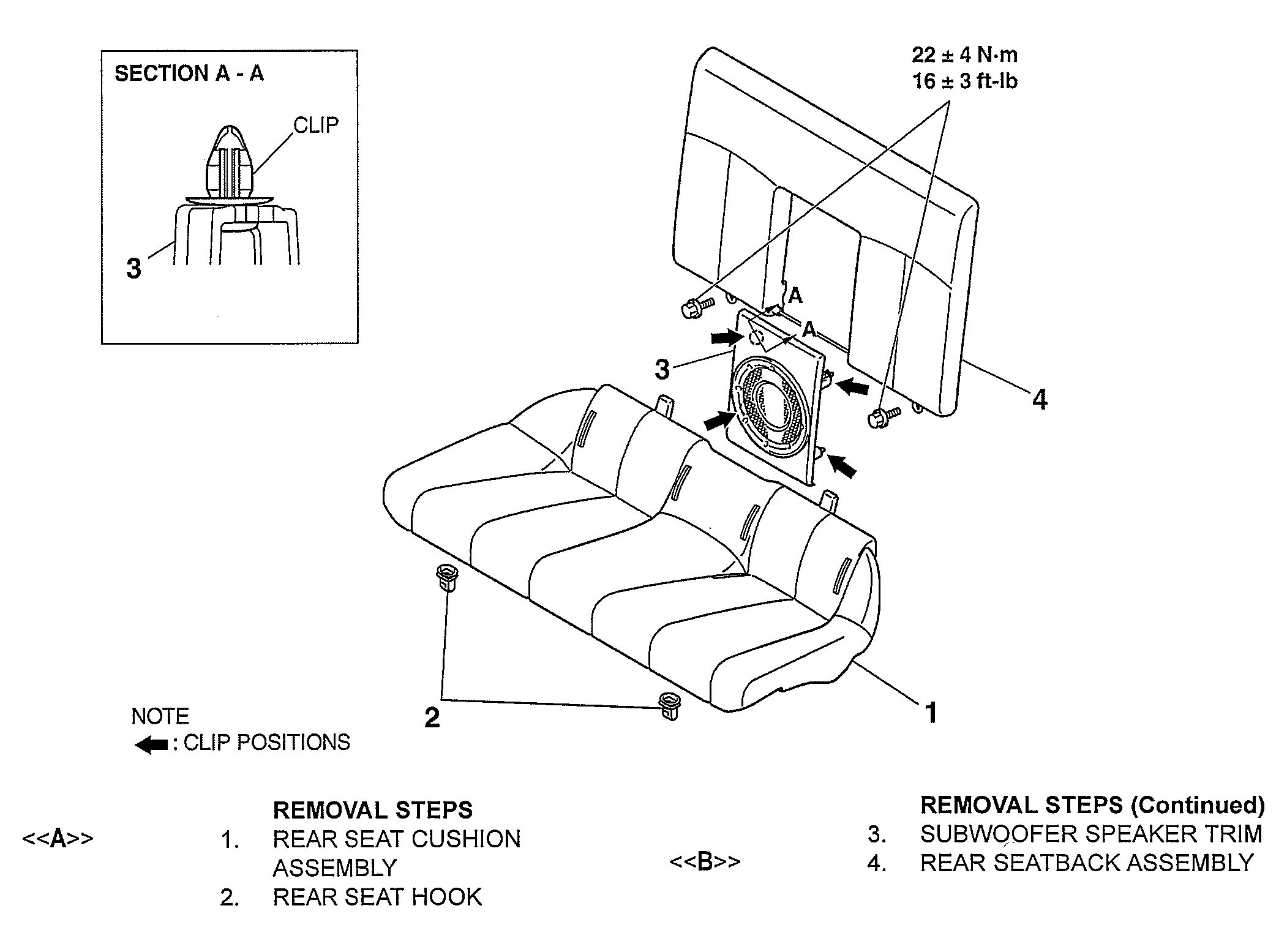

Fig 2: Rear Seat Assembly With Torque Specifications (Eclipse Spyder)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
