Removal And Installation: Notes

Fig 1: Removing And Installing Interior Trim Pieces With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

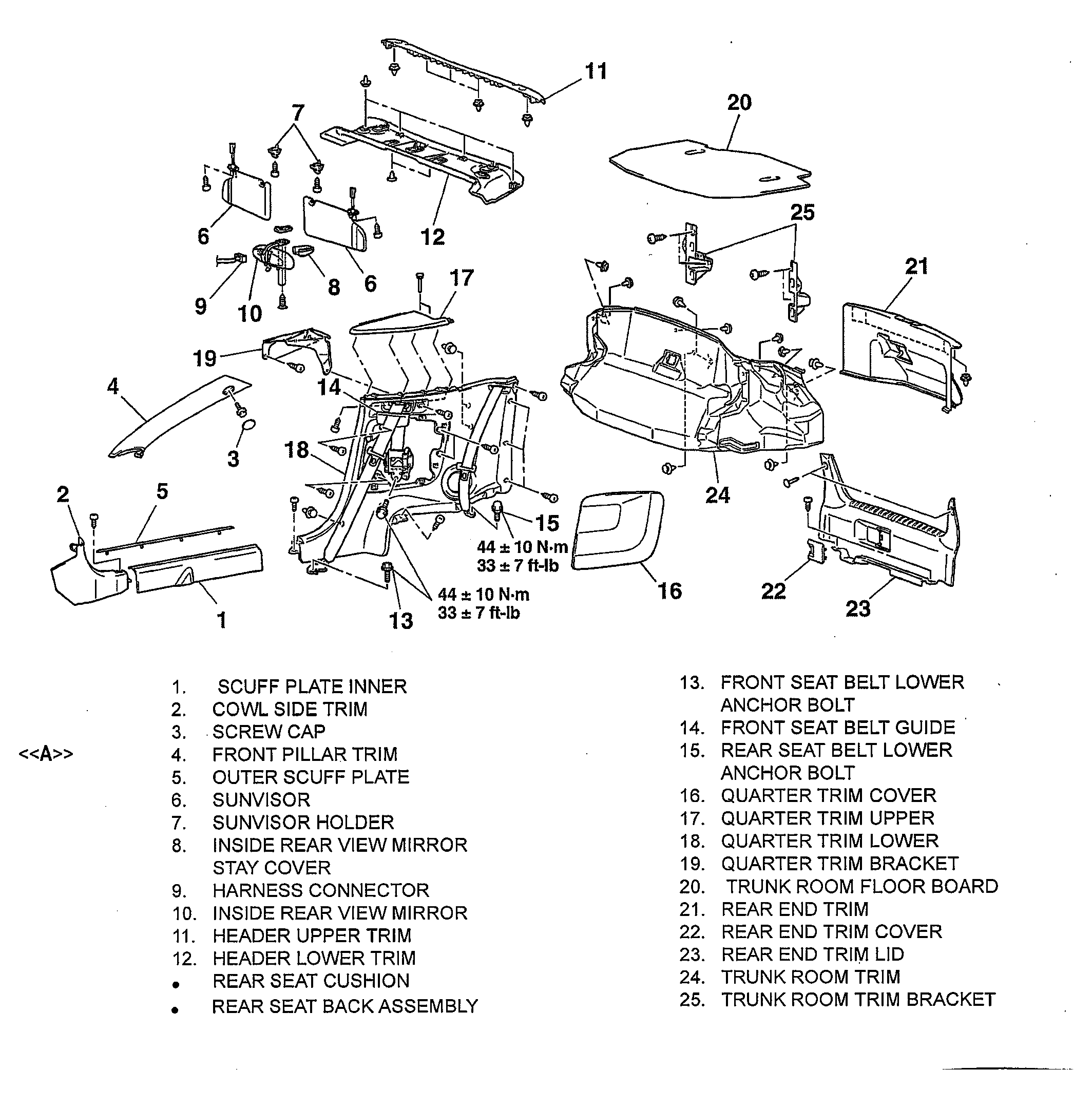

Fig 2: Exploded View Of Interior Trim Pieces With Torque Specifications (Eclipse Spyder)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
