Removal And Installation: Notes

CAUTION:

• Before removing the steering wheel and air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING . Also, put the front wheels in straight-ahead position. Failure to do so may damage the SRS clock spring and render the SRS air bag inoperative, which results in serious driver injury.
• *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

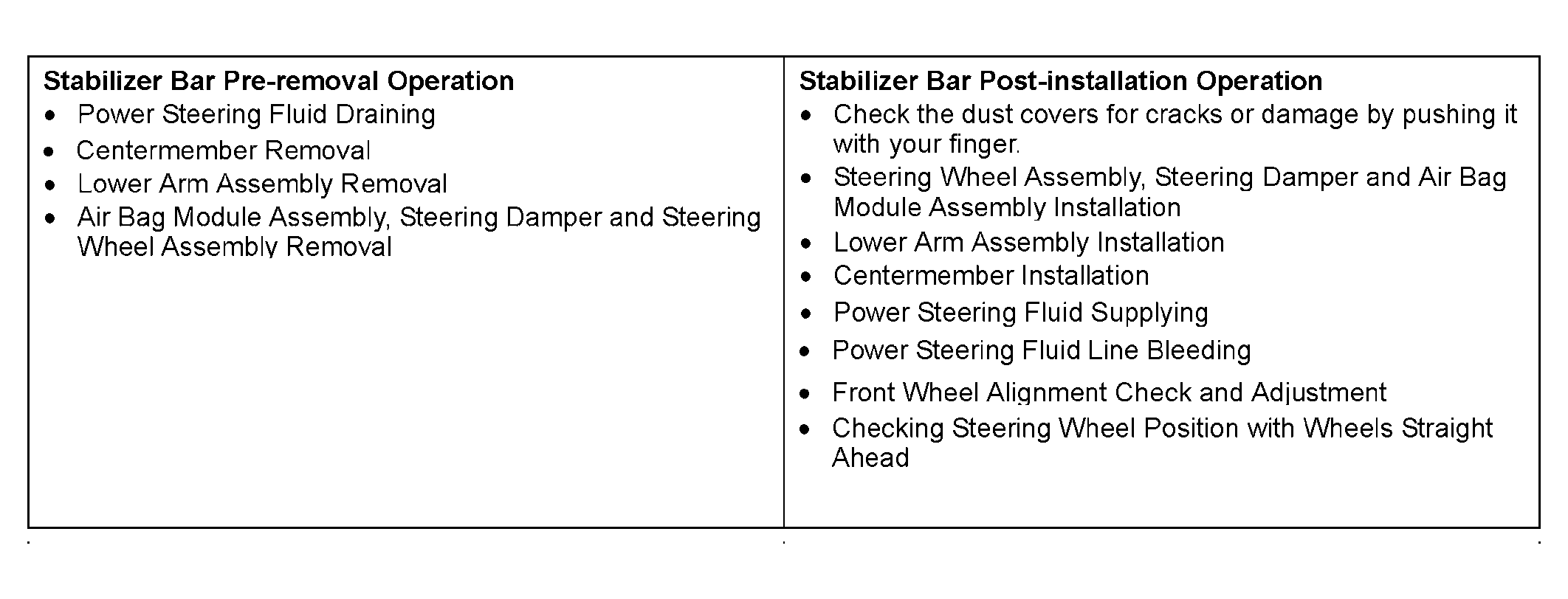

Fig 1: Removing/Installing Stabilizer Bar Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

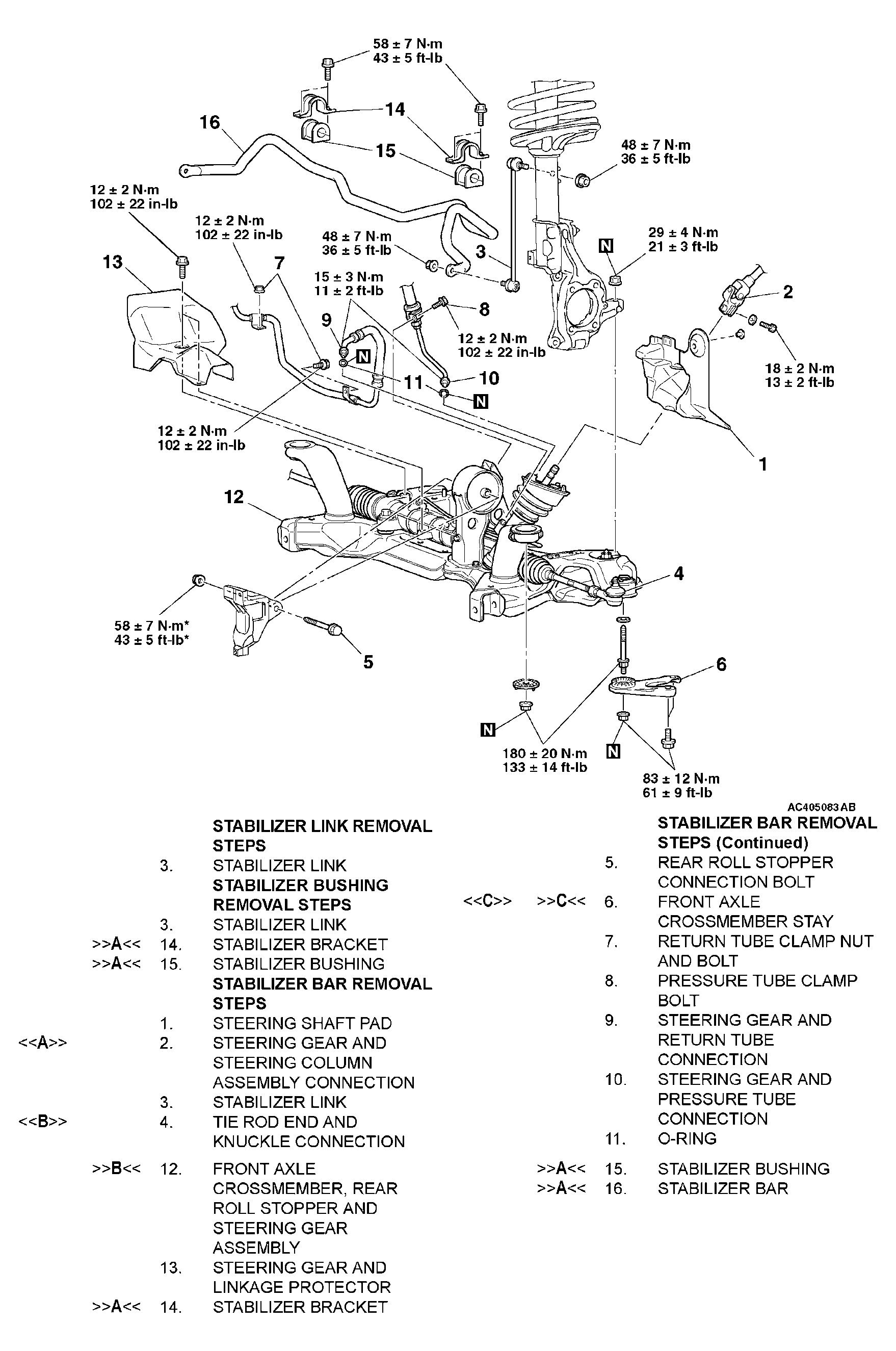

Fig 2: Removing/Installing Stabilizer Bar With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
