Disassembly And Assembly: Notes

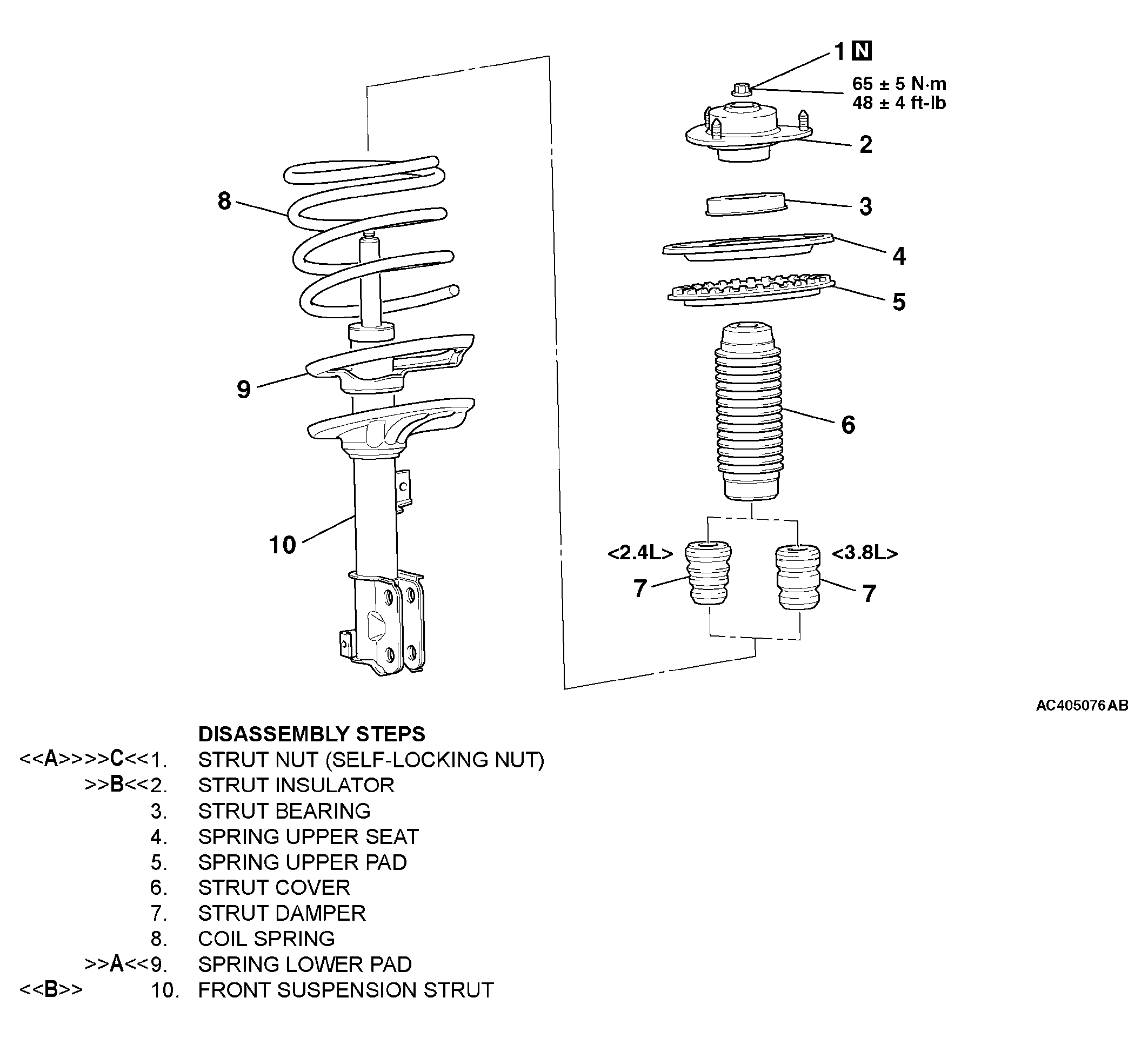

Fig 1: Removing/Installing Strut Springs With Torque Specifications
G04231831Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
