Inspection Procedure 2: Communication Between Scan Tool And The Steering Wheel Sensor Is Not Possible: Notes

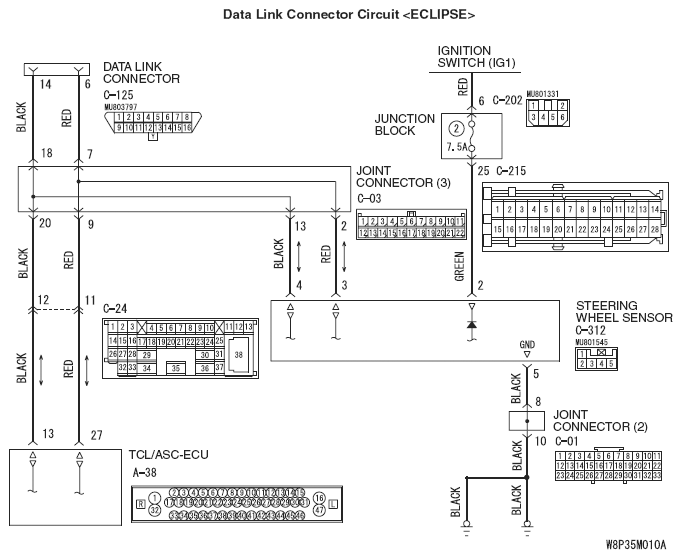

Fig 1: Data Link Connector Circuit Diagram (Eclipse)
G05435564Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

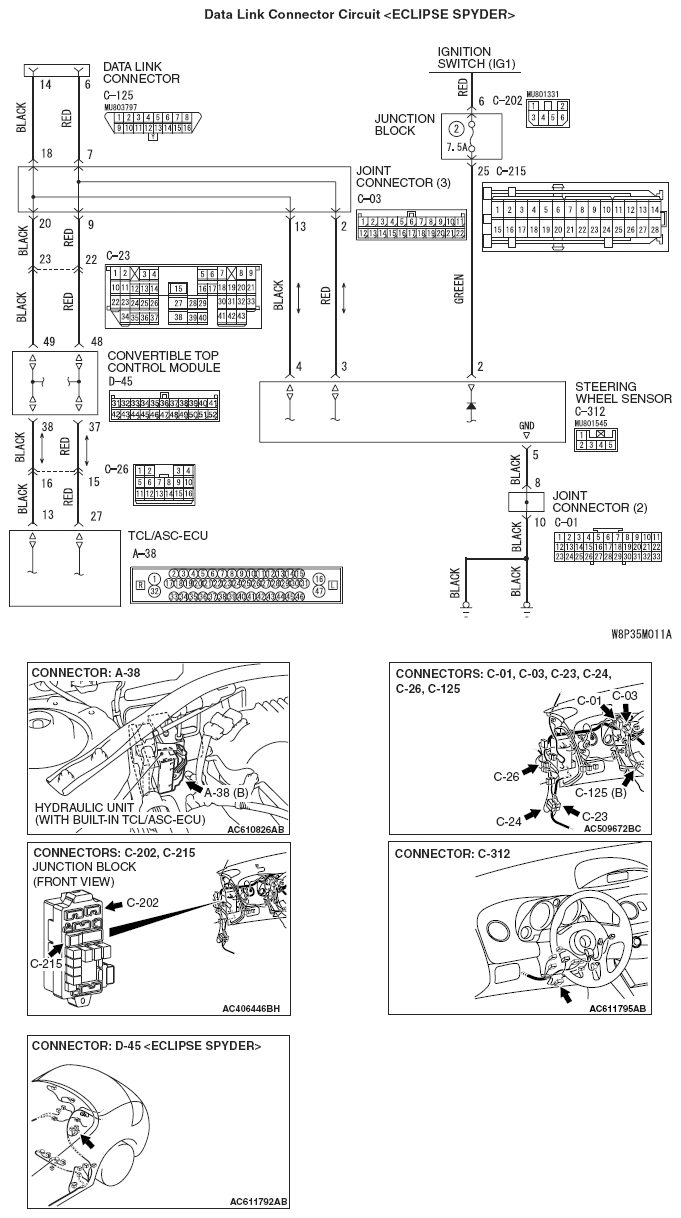

Fig 2: Data Link Connector Circuit Diagram (Eclipse Spyder)
G05435565Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
