Home › Mitsubishi › 2009 › Eclipse GT, Standard › Repair and Diagnosis › Brakes › Traction Control › Traction Control System (TCL) › Hydraulic Unit › Removal And Installation › Notes

Removal And Installation: Notes

NOTE: The ABS/TCL-ECU is integrated in the hydraulic unit.

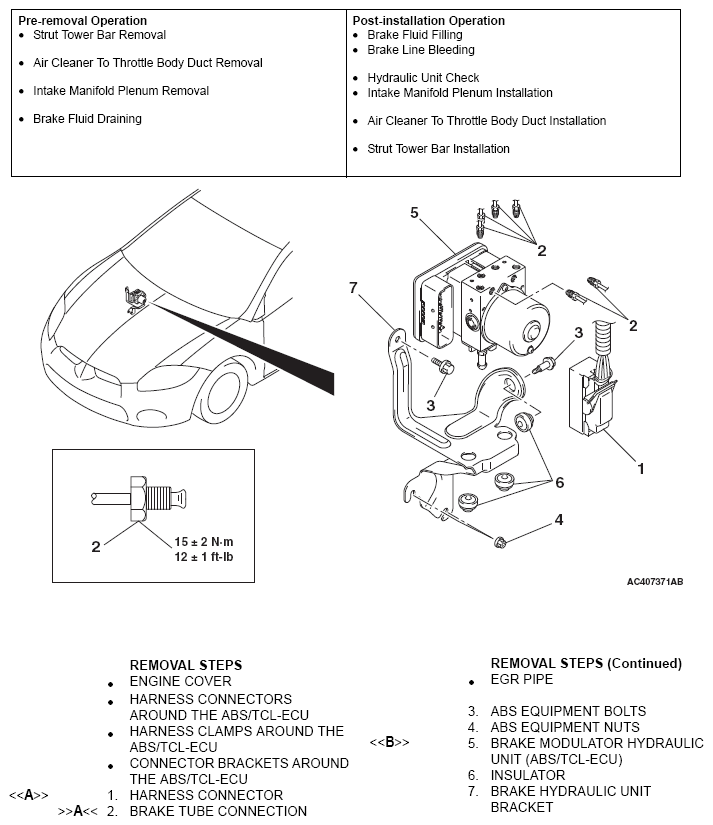

Fig 1: Identifying Hydraulic Unit Components
G05892280Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
