2.4L Engine
2.4L Engine

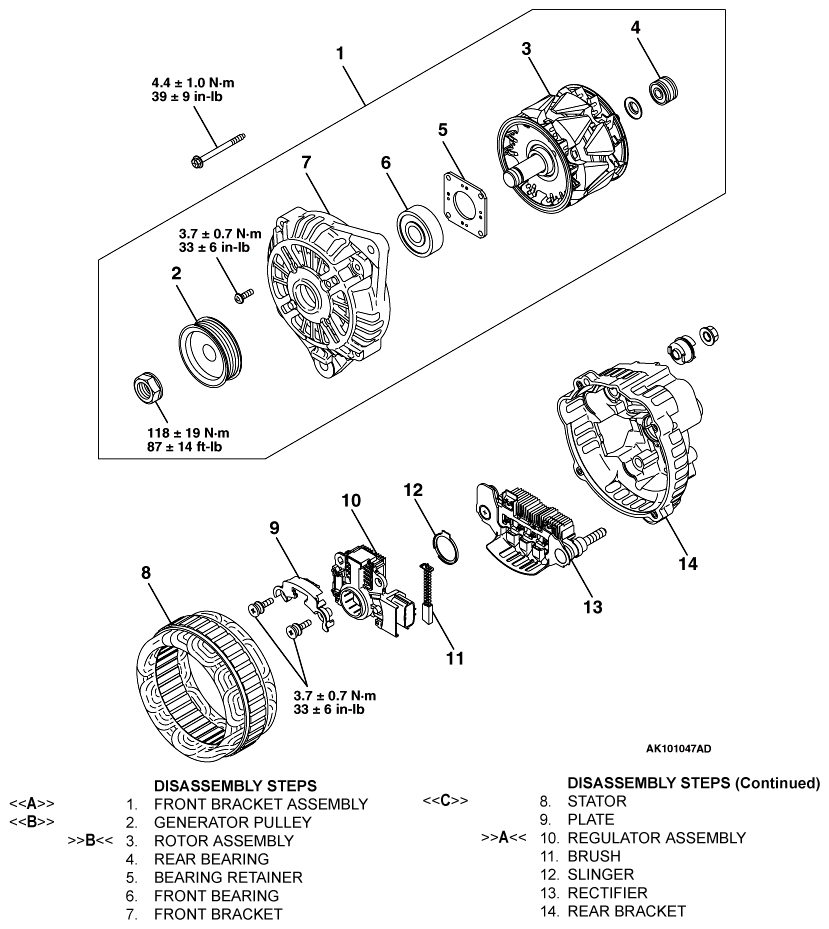

Fig 1: Generator Assembly Replacement Components With Torque Specifications (2.4L)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
