3.8L Engine

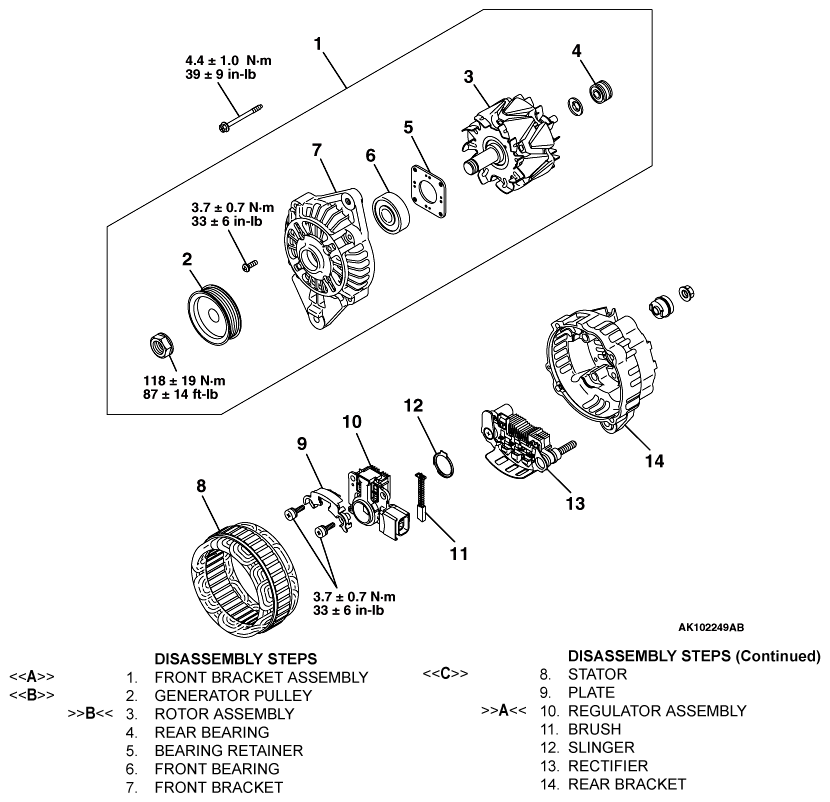

Fig 1: Generator Assembly Replacement Components With Torque Specifications (3.8L)
G06248648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
