System Configuration
System Configuration

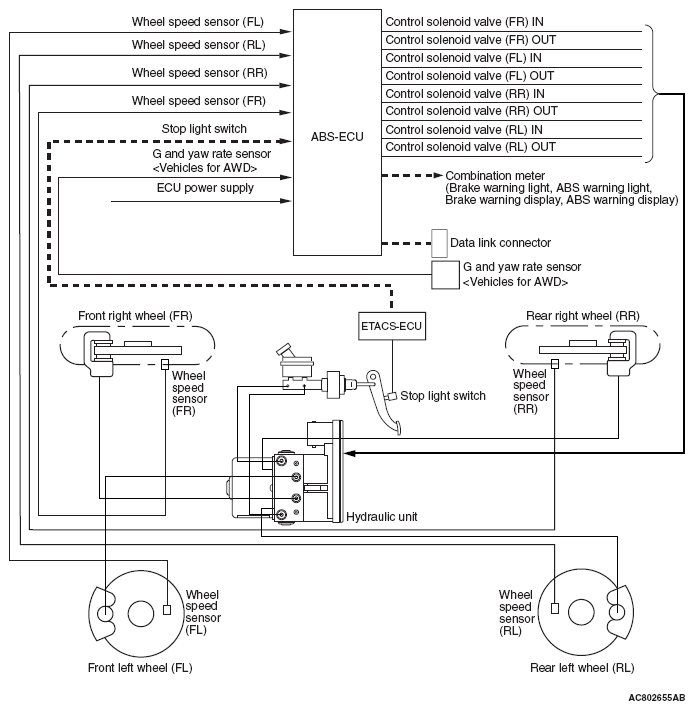

Fig 1: Anti-Lock Braking System (ABS) System Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Dashed lines indicate the CAN bus communication lines.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
