Home › Mitsubishi › 2009 › Lancer ES, Automatic CVT › Repair and Diagnosis › Transmission › Automatic Trans › CVT Overhaul › Forward Clutch › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

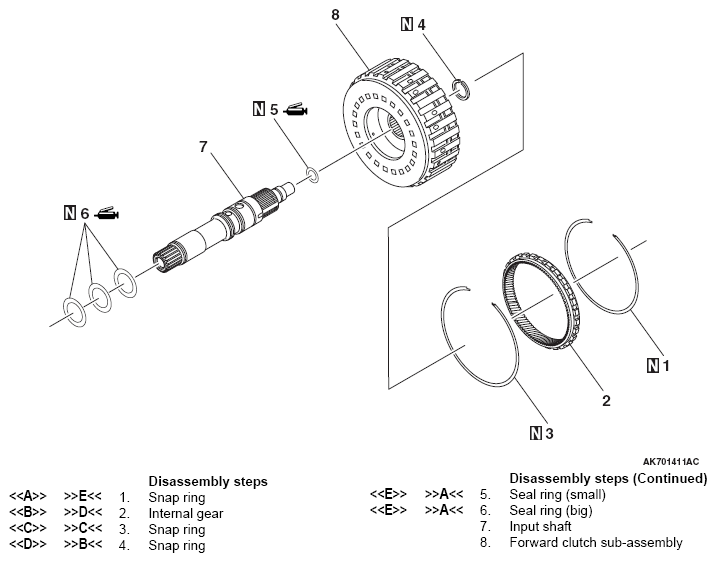

Fig 1: Identifying Forward Clutch Assembly

G05904199

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
