Notes
Removal And Installation: Notes

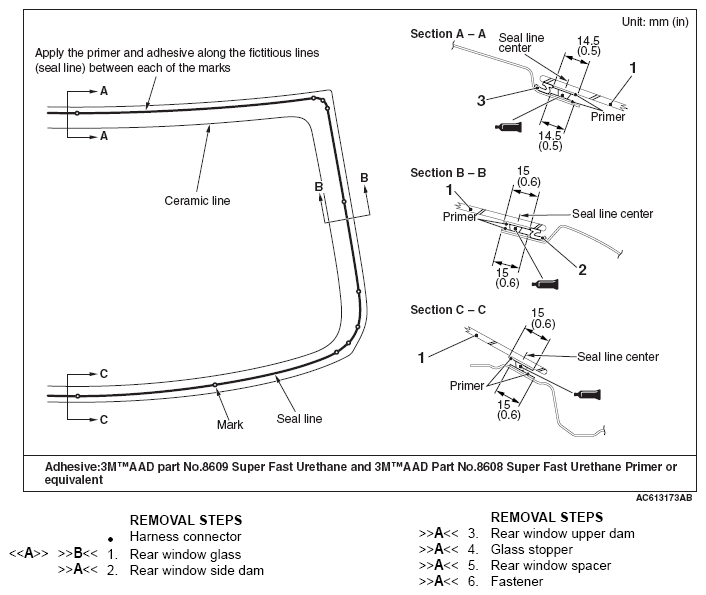

Fig 1: Identifying Rear Window Glass Remove/Install Components (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Rear Window Glass Remove/Install Components (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
