OEM Component Locations: Grounding

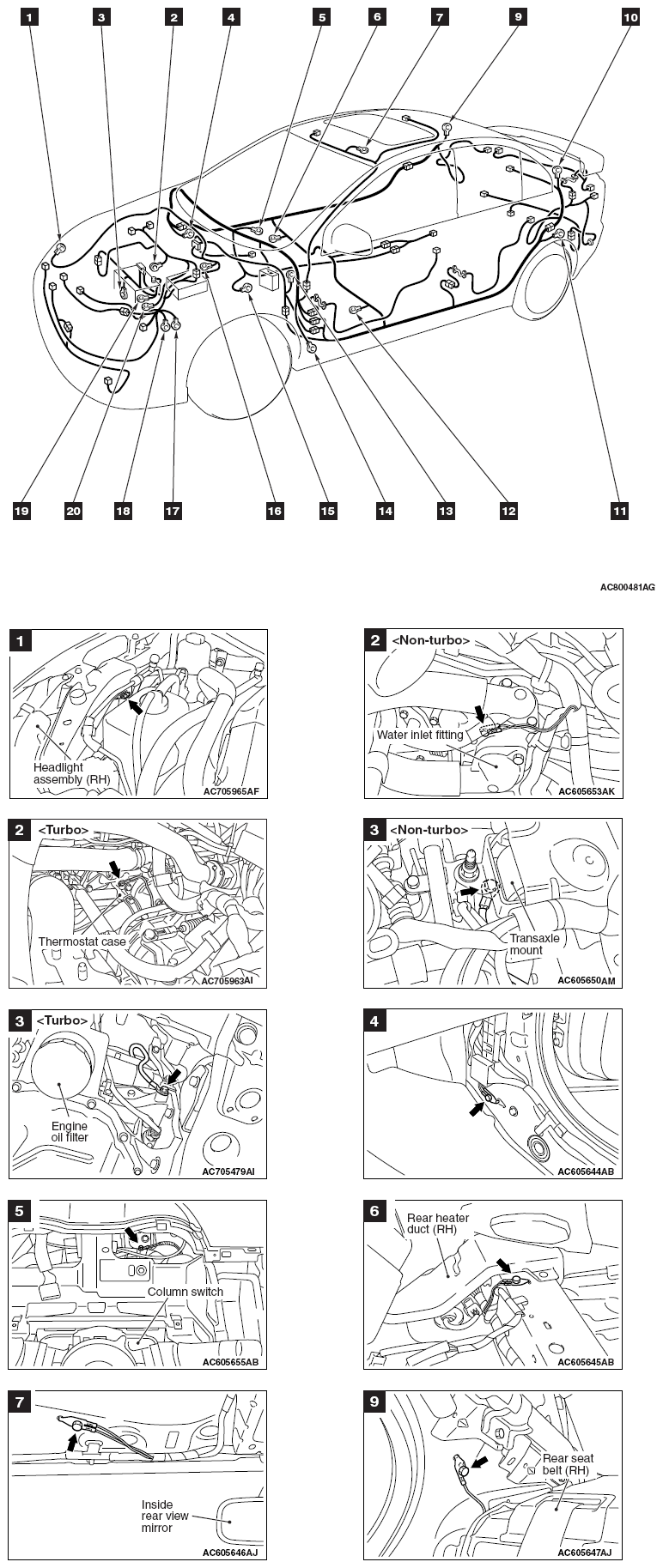

Fig 1: Locating Wiring Harness And Ground Points (Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 20 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

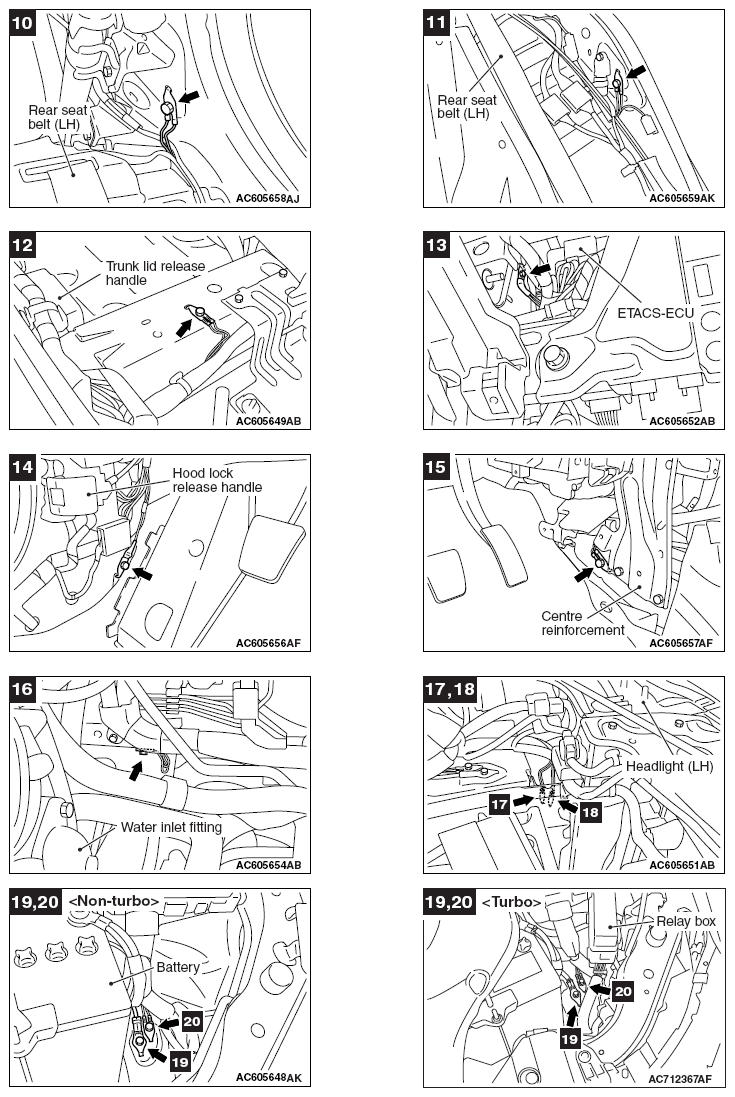

Fig 2: Locating Wiring Harness And Ground Points (Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 20 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

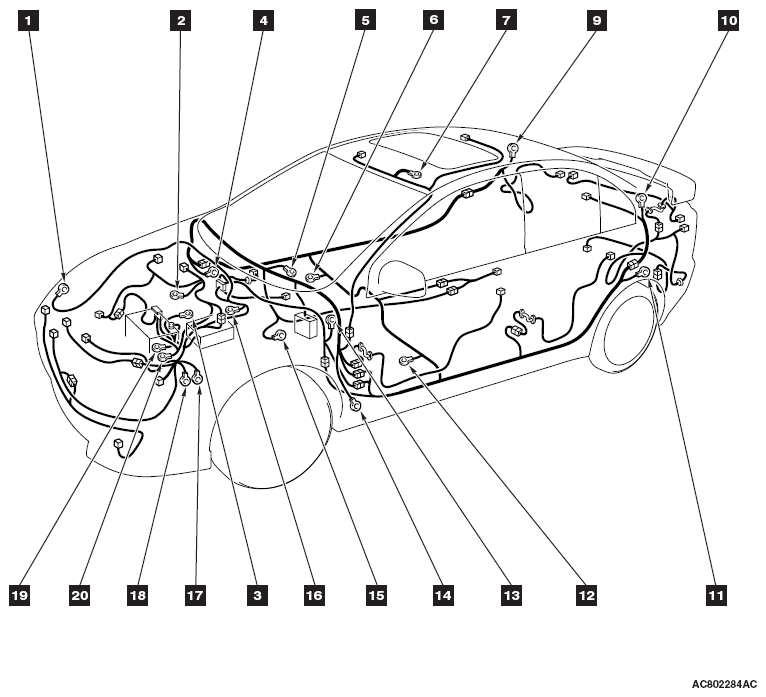

Fig 3: Locating Ground Points

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
