Disassembly And Assembly: Notes

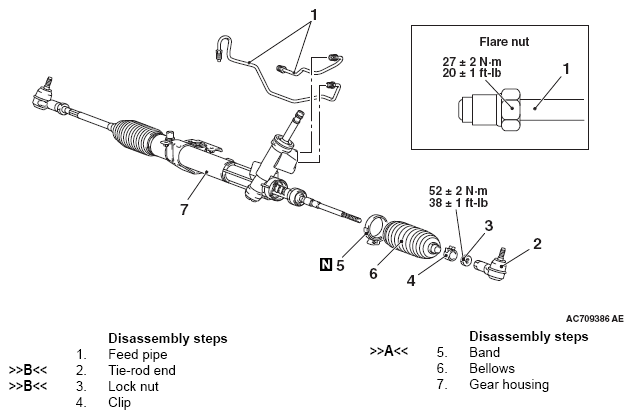

Fig 1: Feed Pipe, Tie-Rod End, Lock Nut, Clip, Band, Bellows And Gear Housing With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992209: Boot band clipping tool
