Removal And Installation: Notes

CAUTION: The part indicated by * is the nut with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

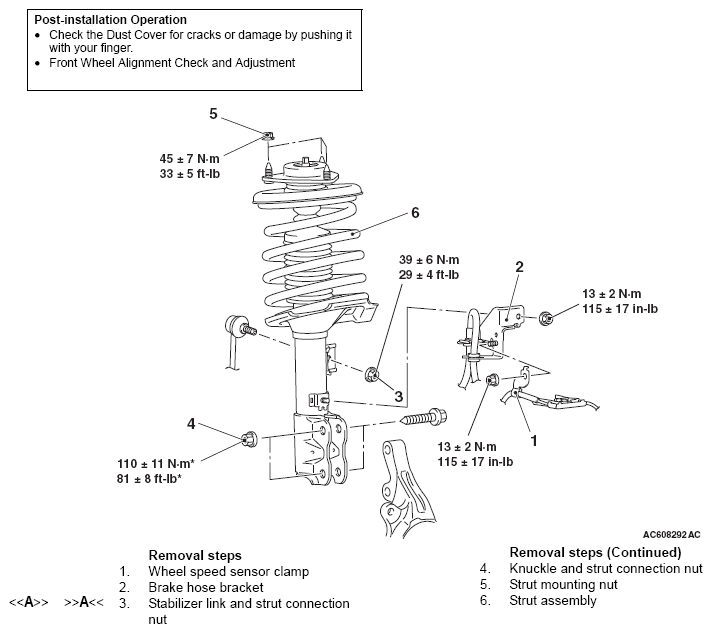

Fig 1: Strut Assembly Replacement Components With Torque Specifications
G05904527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
