Disassembly And Assembly: Notes

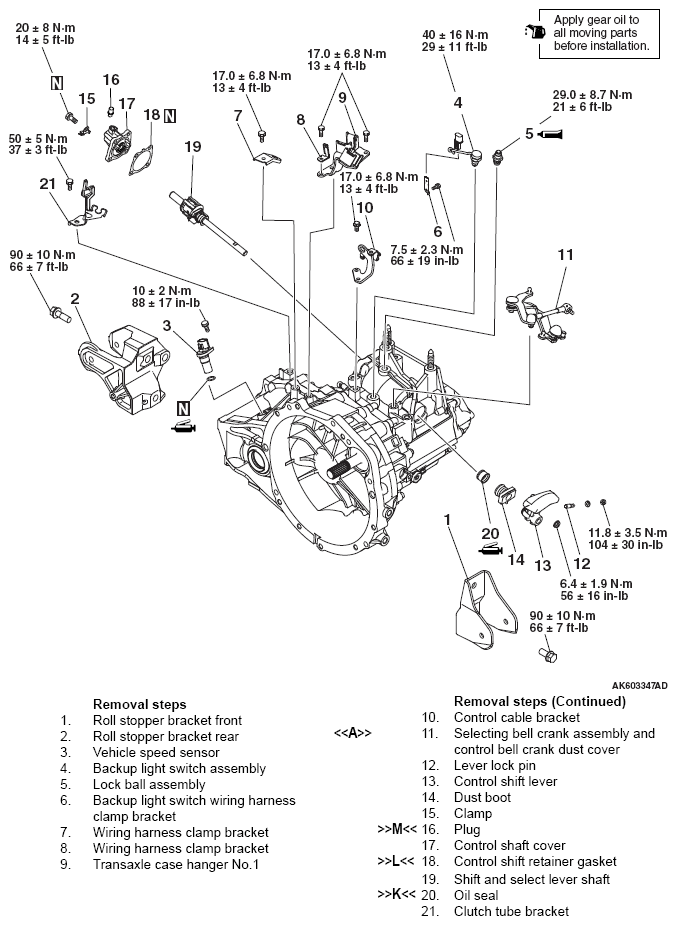

Fig 1: Exploded View Of Transaxle With Torque Specification (1 Of 3)
G05900758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

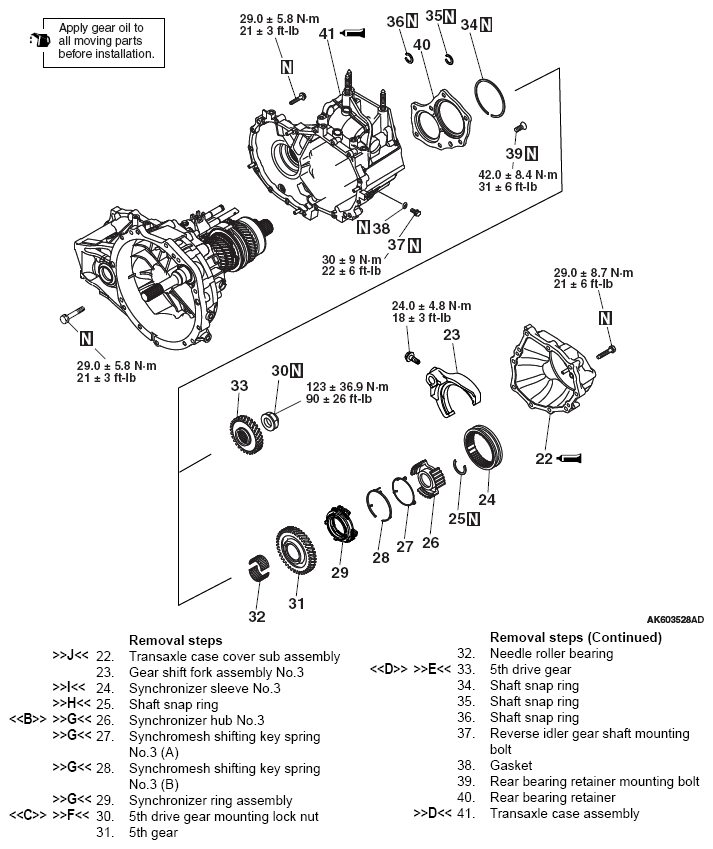

Fig 2: Exploded View Of Transaxle With Torque Specification (2 Of 3)
G05900759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

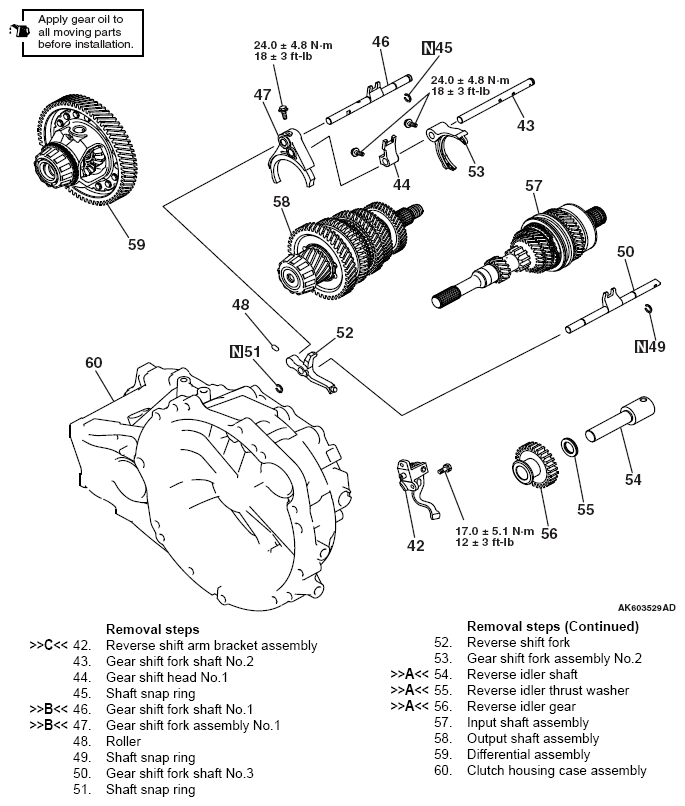

Fig 3: Exploded View Of Transaxle With Torque Specification (3 Of 3)
G05900760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
