Removal And Installation < Liftgate Lower>
›
Notes
Removal And Installation < Liftgate Lower>: Notes

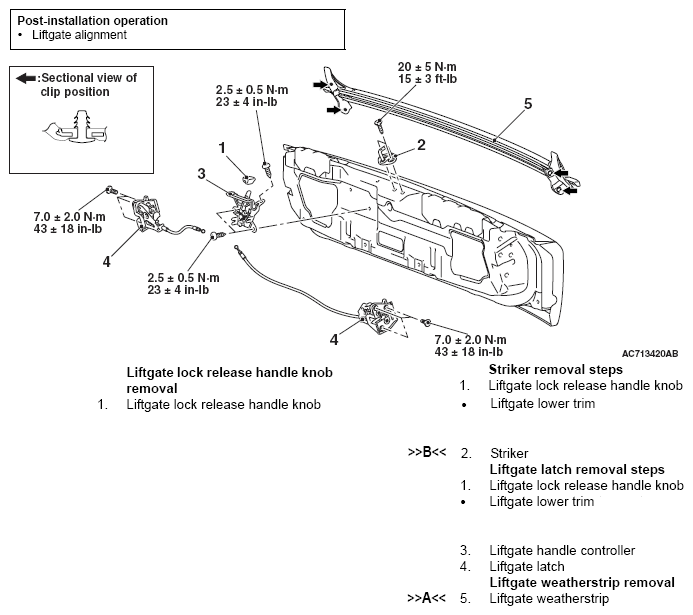

Fig 1: Liftgate Lower Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
