Removal And Installation < Liftgate Upper>
›
Notes
Removal And Installation < Liftgate Upper>: Notes

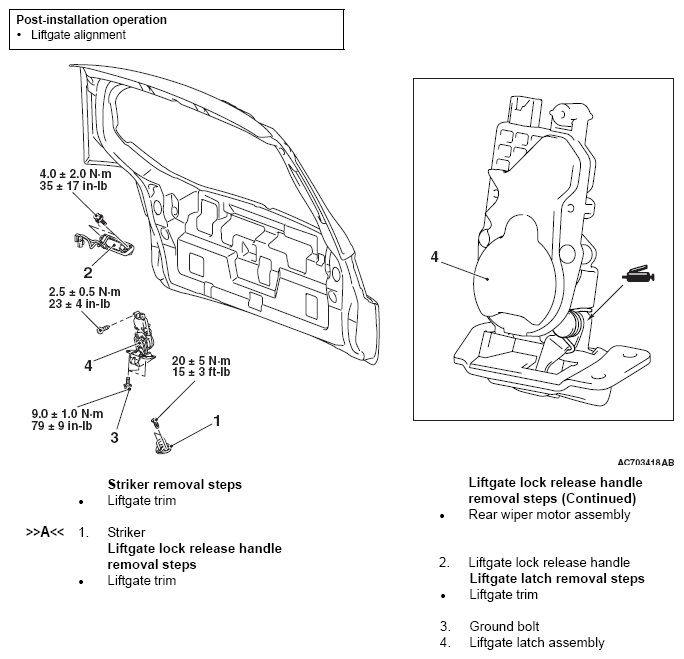

Fig 1: Liftgate Handle And Latch Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
