Inspection Procedure 1: Scan Tool MB991958 Cannot Communicate With The Electronic Control AWD System: Notes

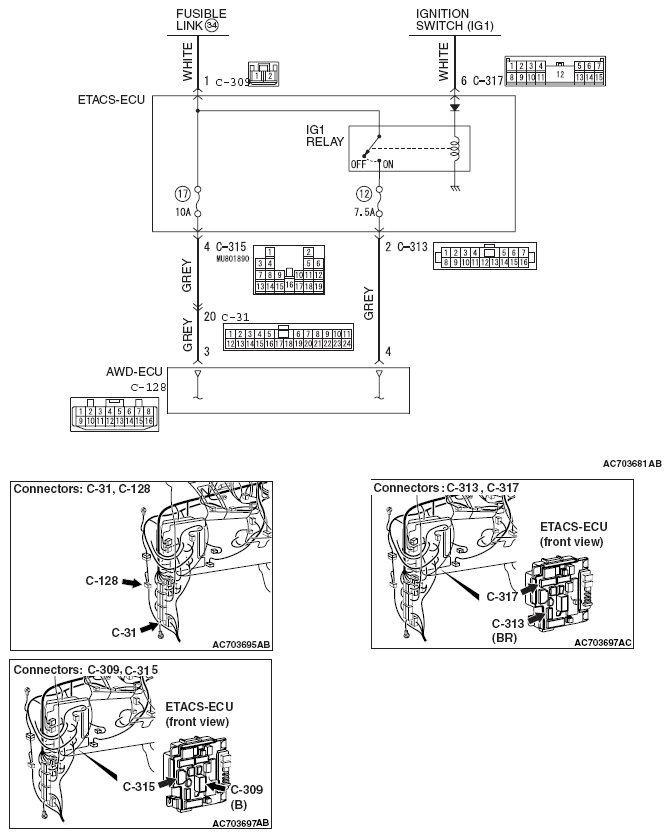

Fig 1: Electronic Control AWD System - Circuit Diagram
G05432279Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
