Removal And Installation < 2.4L Engine >
›
Notes
Removal And Installation < 2.4L Engine >: Notes

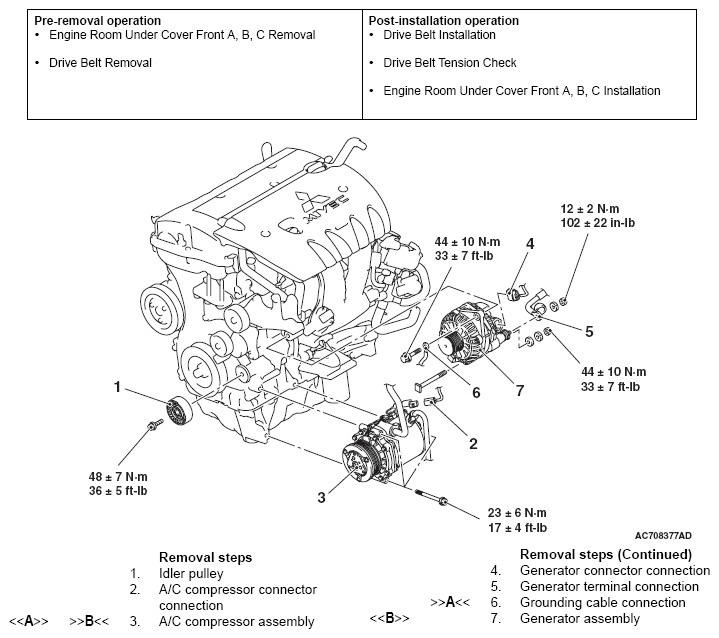

Fig 1: Generator Assembly Replacement Components With Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
