Restraints
›
Passive Restraints
›
Interior
›
Seat Assembly
›
Removal And Installation
Removal And Installation

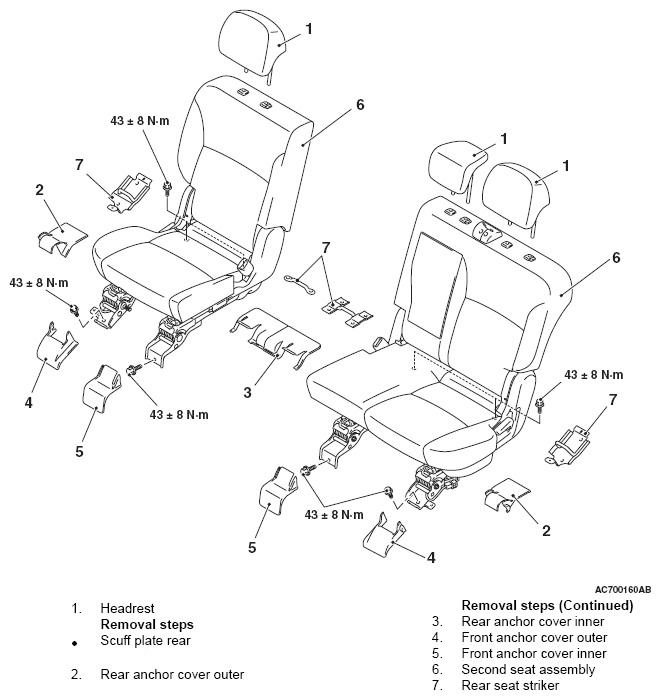

Fig 1: Seat Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
