FixVault
Home
›
Mitsubishi
›
2009
›
Outlander ES, AWD
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Trims
›
Liftgate Trim
›
Removal And Installation
Removal And Installation

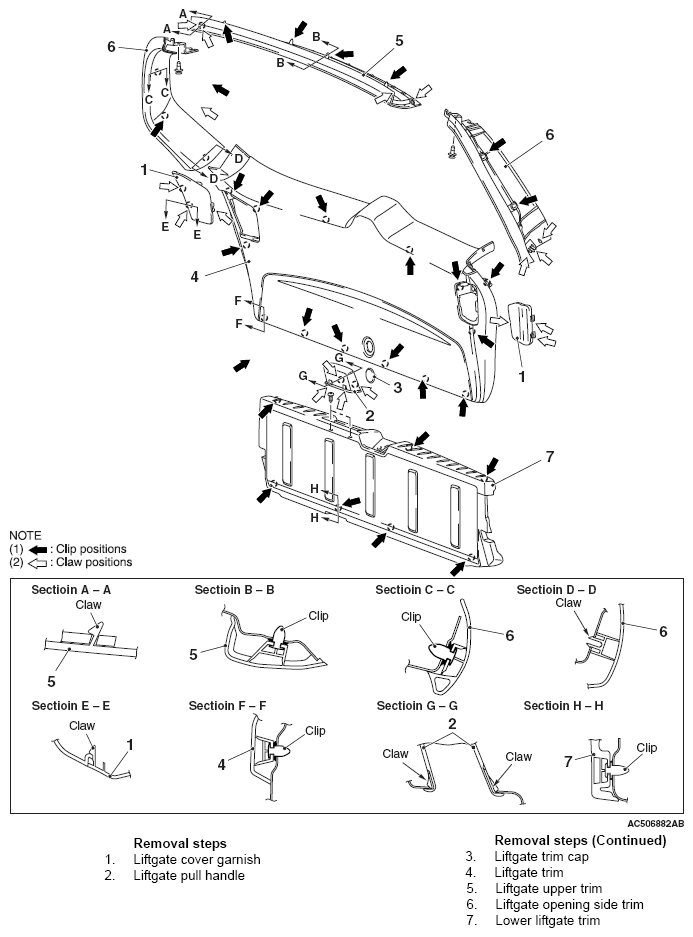

Fig 1: Identifying Liftgate Trim Remove/Install Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
