Disassembly And Reassembly: Notes

NOTE: For additional service information, refer to TSB APPLICATION OF SILICONE GREASE ADDED - SERVICE MANUAL REVISION .

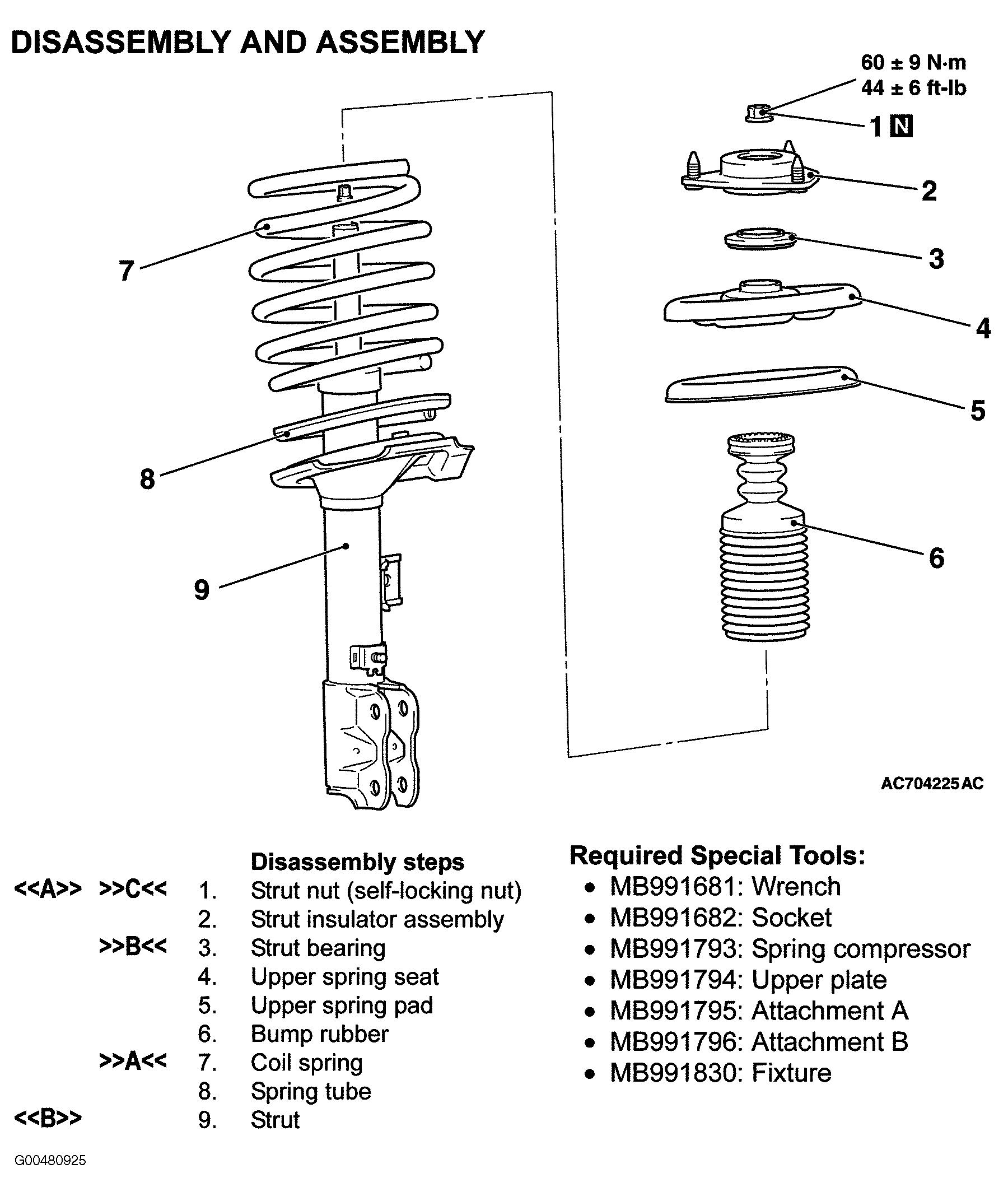

Fig 1: Disassembling/Assembling View of Strut Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
