Removal And Installation: Notes

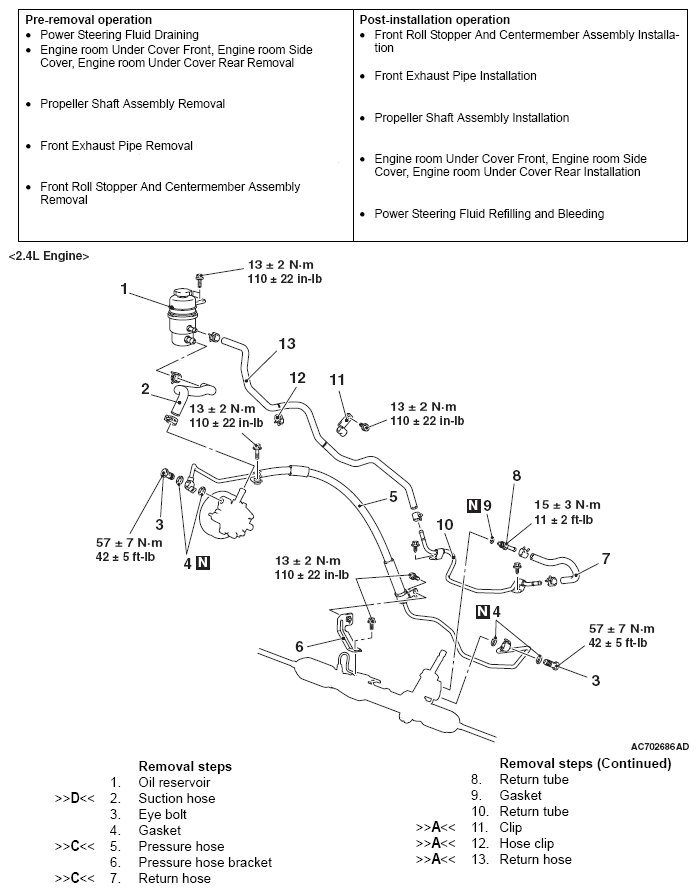

Fig 1: Power Steering Hoses Replacement Components With Torque Specifications - 2.4L Engine
G05432833Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

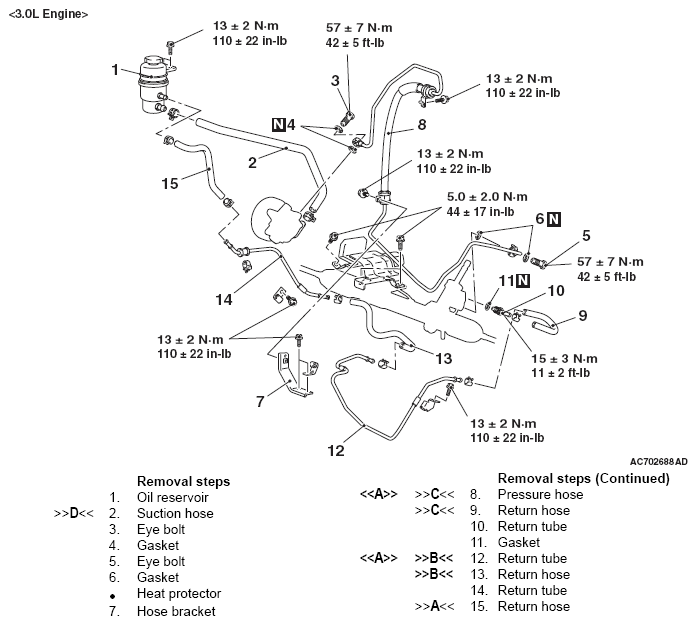

Fig 2: Power Steering Hoses Replacement Components With Torque Specifications - 3.0L Engine
G05432834Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
