Removal And Installation: Notes

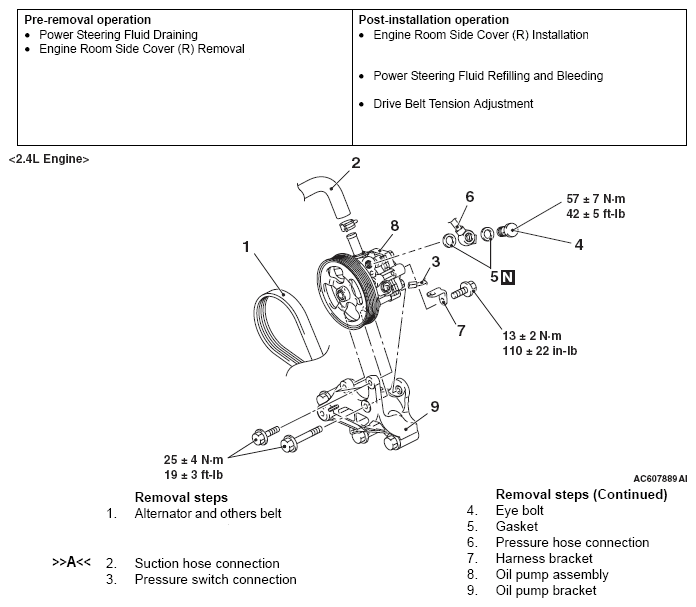

Fig 1: Power Steering Oil Pump Assembly With Torque Specifications - 2.4L Engine
G05432823Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

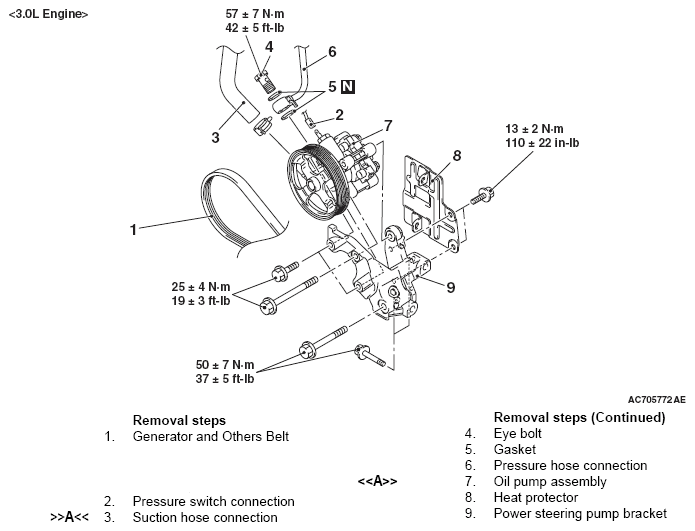

Fig 2: Power Steering Oil Pump Assembly With Torque Specifications - 3.0L Engine
G05432824Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
