Removal And Installation

CAUTION: To store the change gear ratio status of the CVT assembly in the TCM memory, drive the vehicle at 3 km/h or faster after replacing the TCM.

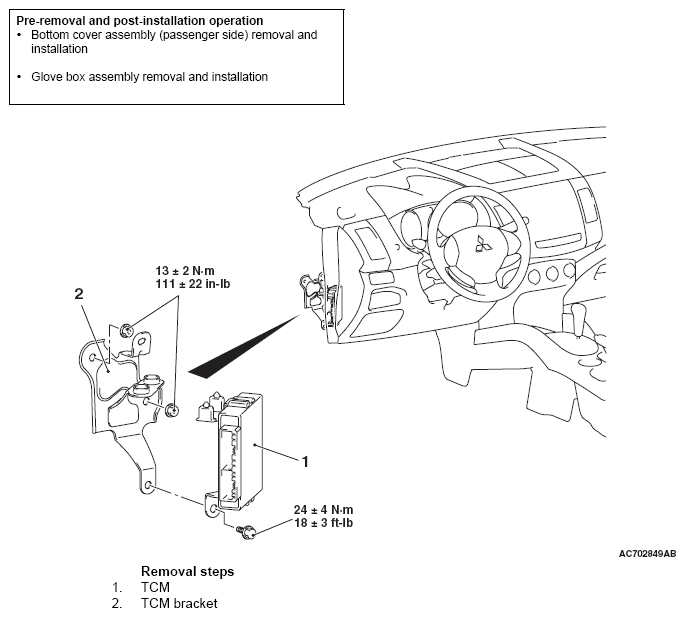

Fig 1: Transaxle Control Module Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
