Removal And Installation: Notes

CAUTION: Before removing the clock spring connector, refer to SERVICE PRECAUTIONS .

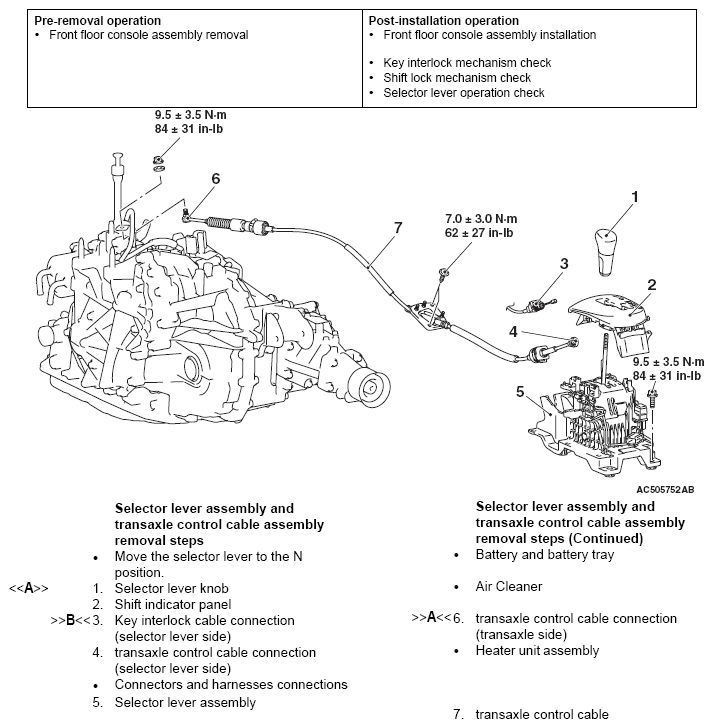

Fig 1: Transaxle Control Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
