Removal And Installation
›
Notes
Removal And Installation: Notes

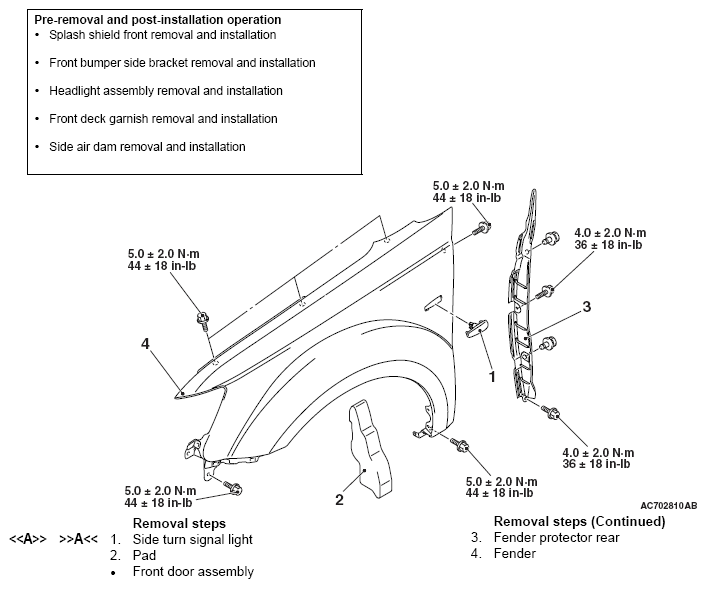

Fig 1: Fender Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
