OEM Component Locations: Grounding

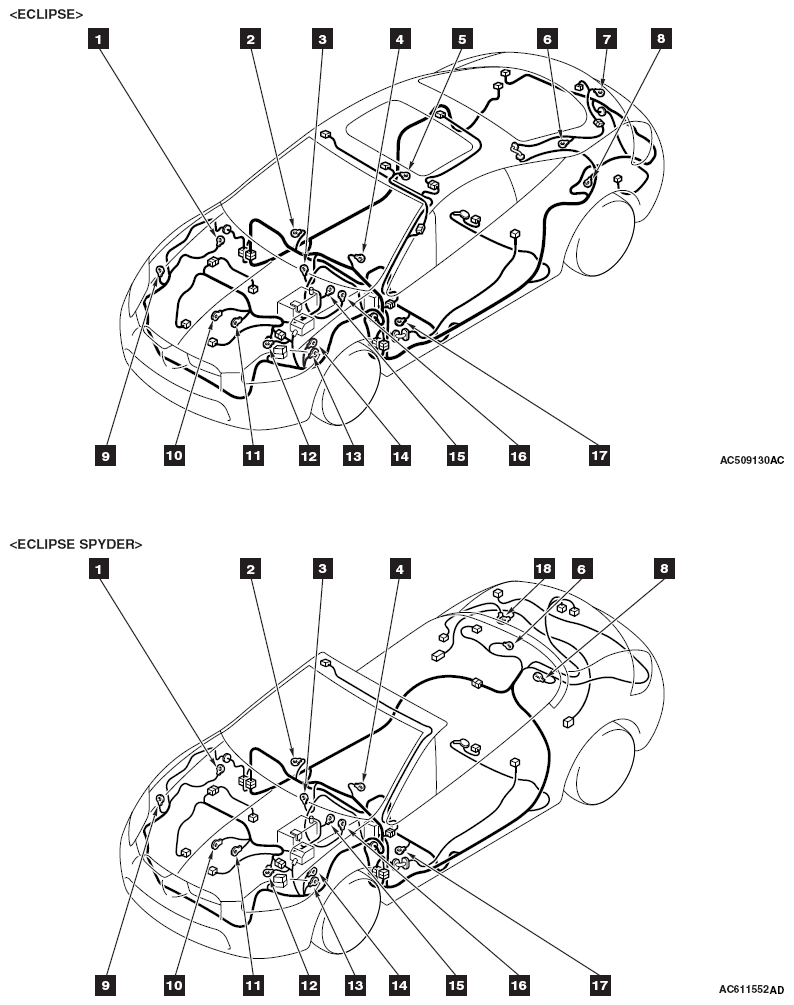

Fig 1: Wiring Harness And Ground Points Location (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 17 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

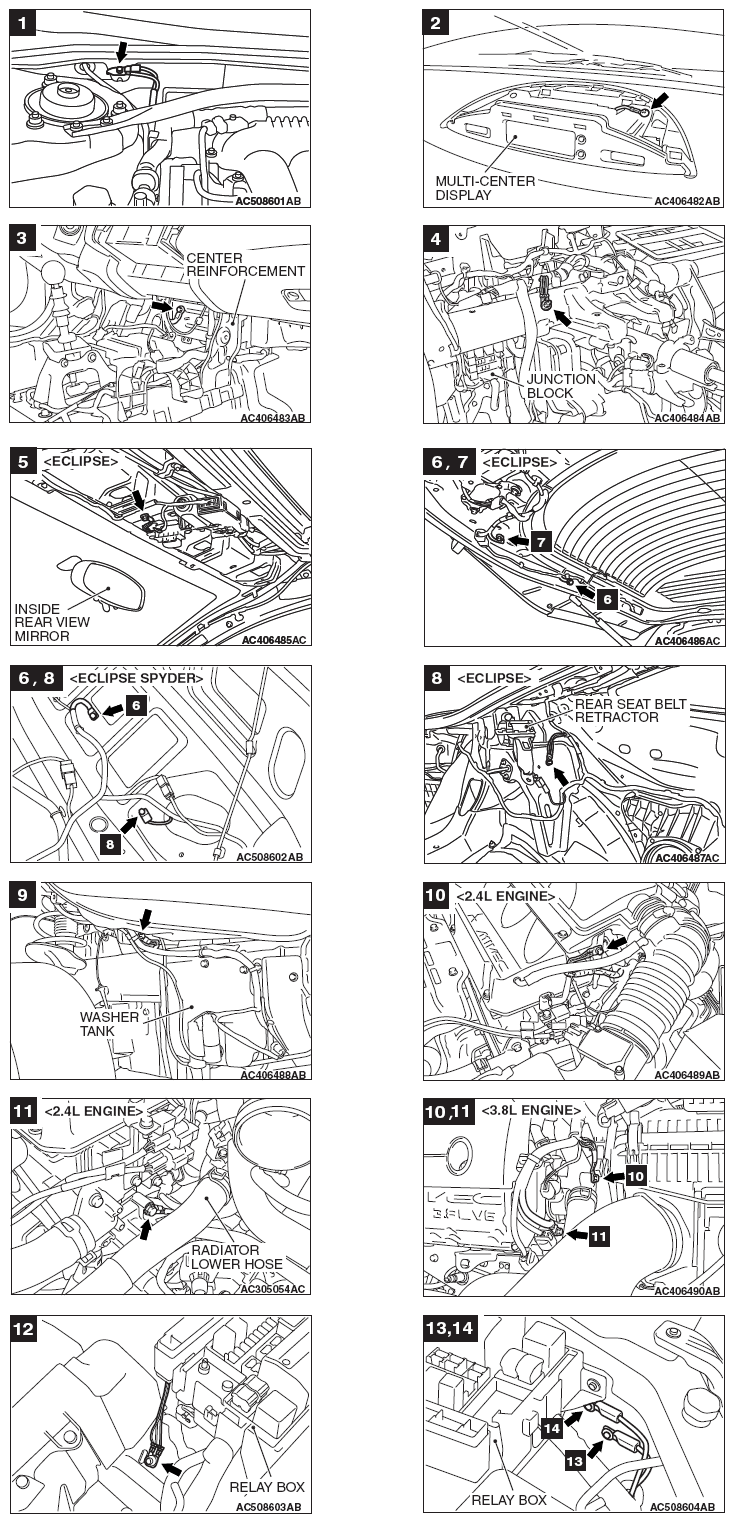

Fig 2: Wiring Harness And Ground Points Location (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

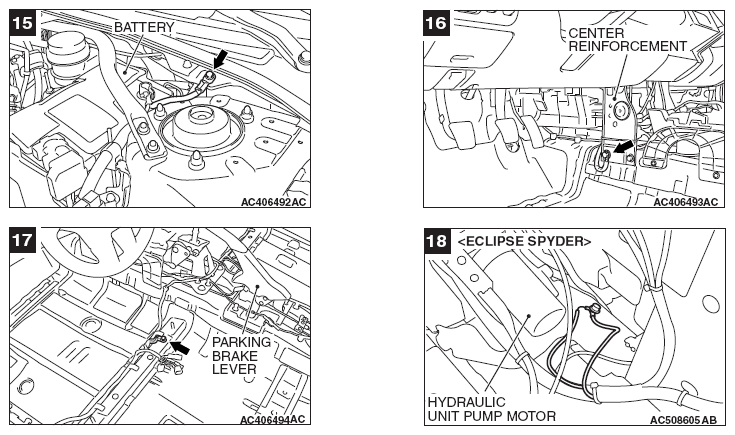

Fig 3: Wiring Harness And Ground Points Location (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
